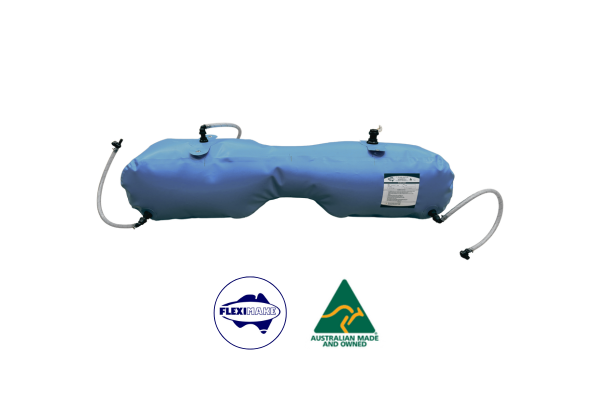

DW110BDC – 110L Box Drinking Water Bladder with Dual Cut-Outs for Large 4WD

Product Details

DW110BDC – 110L is built for durability and fits perfectly in vehicles with limited space. Its dual cut-out design accommodates both the transmission hump and centre console, making it ideal for footwell installation in large SUVs like the Toyota Land Cruiser 300 Series, especially those with tall transmission humps and extended centre consoles. Australian-made and heavy-duty, this flexible bladder is perfect for off-grid adventures, road trips, camping, or caravanning, providing safe and convenient drinking water.

Fitment & Compatibility — DW110BDC

Min. Space Needed	1450–1550 mm (L) × 200 mm (W) × 300 mm (H)

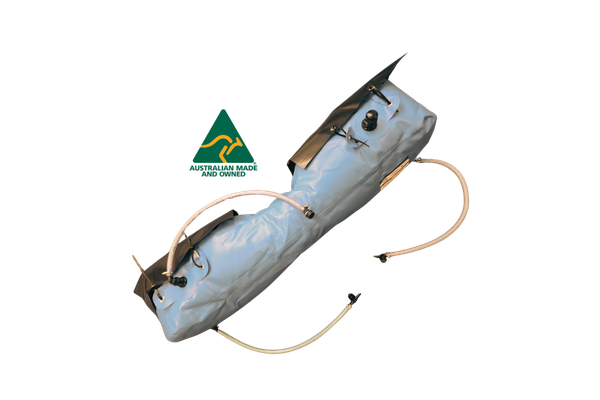

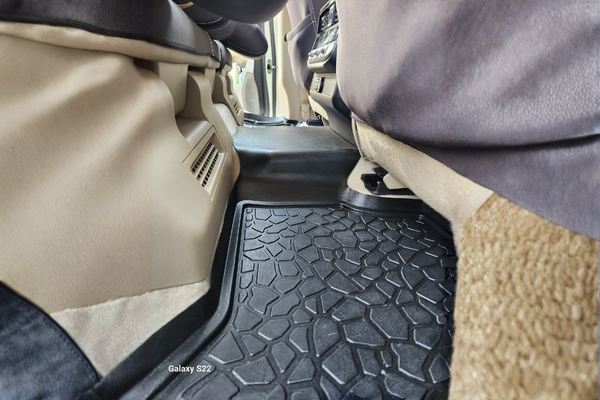

Best Location	Rear footwell behind driver's seat — fits around tall transmission humps and extended centre consoles
Vehicle Fit	Toyota LandCruiser 300 Series Large SUVs with tall transmission humps 4WDs with extended centre consoles Specifically designed for large SUVs with tall transmission humps and extended centre consoles, such as the Toyota LandCruiser 300 Series. Features dual cut-outs for both transmission hump and centre console clearance. Dual Cut-Out Design: Transmission hump and centre console cut-outs ensure a snug, hassle-free fit without blocking seat movement or console access, even in vehicles with tall transmission tunnels.
Fittings & Features	✓ Dual outlets: Two 13mm outlets for easy water access from either side ✓ Large 25mm inlet for hose or bucket filling when off-grid ✓ Top panel breather (prevents over-pressurisation and overflow) ✓ RPVC Protective Flap for modern vehicles with auto-adjusting seats ✓ Optional add-on: Internal baffle (reduces water movement for smoother, safer transport) ✓ Australian-made, heavy-duty food-grade materials RPVC Protective Flap: Reduces contact and pressure on the bladder during auto-adjusting seat movement, extending the life of your bladder and protecting against abrasion.
Fitment Guidance	Flexible bladder – must be secured. If placed loose in the footwell without restraint, the bladder can shift or roll during driving – particularly important with 110L of water (approximately 110kg). Best practice for footwell installation: The bladder is designed to fit snugly between the rear seat base and the back of the front seats. For vehicles with adjustable rear seats, position the seats to hold the bladder gently in place. For modern vehicles with auto-adjusting seats, we recommend using the RPVC Protective Flap to reduce contact pressure. Note: Flexible bladder can conform around the transmission hump and extended centre console. The dual cut-out design allows secure placement while maximising water capacity and maintaining full access to your vehicle's console storage.

Specifications

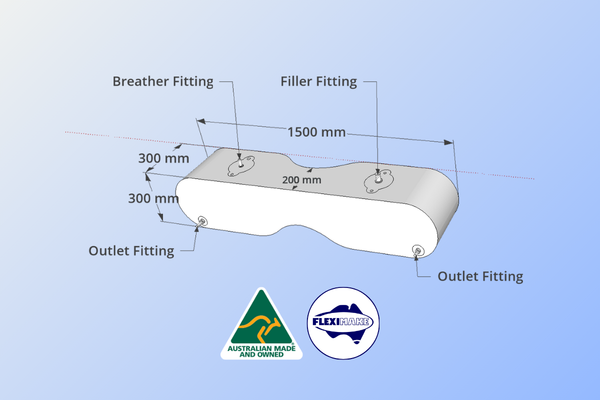

Dimensions: ~1500 × 300 × 300H mm
Approx. Capacity: 110 L
Design: Box shape with Dual Cutout (BDC)
Optional Internal Baffle – reduces sloshing on rough tracks or water

Fittings Specification:

Inlet : 1"(25 mm) BSP Male
Breather : ½" (13 mm) BSP Male
Outlets: ½" (13 mm) BSP Male x2

Material Options:

Standard Heavy Duty PVC (Grey) – Suitable for regular use
Extra Heavy Duty TPU (Light Blue) – Flexible, perfect for long trips & rough conditions

Quality & Safety:

Certified AS/NZS 4020:2018 – safe for drinking water
Australian Made – designed and manufactured locally
25 mm HF & Hot-Air Overlap Welds – extra strength and durability

Why Customers Love It:

Easy to Install – Fits vehicles with tall tansmission humps and extended centre consoles.
Built to Last – Robust Construction ensures long-term durability.
Flexible Options – Choice of materials to suit different needs and adventures.

What's Included

DW110BDC Bladder - Qty 1
1” (25mm) Skin Fitting & Cap (Inlet) - Qty 1
½” (13mm) Skin Fitting & Hose Kit with 90° Elbow and Cap (Breather)- Qty 1
½” (13mm) Skin Fittings & Hose Kits with 90° Elbow and Tap(Outlets) - Qty 2
RPVC Protective Flap – Qty 2
Teflon Tape – Qty 1
Instruction Sheet – Qty 1
Self-Adhesive Repair Patch – Qty 1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 7%

DW110BDC – 110L Box Drinking Water Bladder with Dual Cut-Outs for Large 4WD

$342.86

$342.86 ~~$372.67~~

Tax included. Shipping calculated at checkout.

Australian Made
2 Years Warranty
AS/NZS 4020:2018 Drinking Certified

Hurry up, only 8 items left in stock.

Fast Dispatch
Secure Payment
Responsive Support

Product Details

Fitment & Compatibility — DW110BDC

Min. Space Needed	1450–1550 mm (L) × 200 mm (W) × 300 mm (H)
Best Location	Rear footwell behind driver's seat — fits around tall transmission humps and extended centre consoles
Vehicle Fit	Toyota LandCruiser 300 Series Large SUVs with tall transmission humps 4WDs with extended centre consoles Specifically designed for large SUVs with tall transmission humps and extended centre consoles, such as the Toyota LandCruiser 300 Series. Features dual cut-outs for both transmission hump and centre console clearance. Dual Cut-Out Design: Transmission hump and centre console cut-outs ensure a snug, hassle-free fit without blocking seat movement or console access, even in vehicles with tall transmission tunnels.
Fittings & Features	✓ Dual outlets: Two 13mm outlets for easy water access from either side ✓ Large 25mm inlet for hose or bucket filling when off-grid ✓ Top panel breather (prevents over-pressurisation and overflow) ✓ RPVC Protective Flap for modern vehicles with auto-adjusting seats ✓ Optional add-on: Internal baffle (reduces water movement for smoother, safer transport) ✓ Australian-made, heavy-duty food-grade materials RPVC Protective Flap: Reduces contact and pressure on the bladder during auto-adjusting seat movement, extending the life of your bladder and protecting against abrasion.
Fitment Guidance	Flexible bladder – must be secured. If placed loose in the footwell without restraint, the bladder can shift or roll during driving – particularly important with 110L of water (approximately 110kg). Best practice for footwell installation: The bladder is designed to fit snugly between the rear seat base and the back of the front seats. For vehicles with adjustable rear seats, position the seats to hold the bladder gently in place. For modern vehicles with auto-adjusting seats, we recommend using the RPVC Protective Flap to reduce contact pressure. Note: Flexible bladder can conform around the transmission hump and extended centre console. The dual cut-out design allows secure placement while maximising water capacity and maintaining full access to your vehicle's console storage.

Specifications

Dimensions: ~1500 × 300 × 300H mm
Approx. Capacity: 110 L
Design: Box shape with Dual Cutout (BDC)
Optional Internal Baffle – reduces sloshing on rough tracks or water

Fittings Specification:

Inlet : 1"(25 mm) BSP Male
Breather : ½" (13 mm) BSP Male
Outlets: ½" (13 mm) BSP Male x2

Material Options:

Standard Heavy Duty PVC (Grey) – Suitable for regular use
Extra Heavy Duty TPU (Light Blue) – Flexible, perfect for long trips & rough conditions

Quality & Safety:

Certified AS/NZS 4020:2018 – safe for drinking water
Australian Made – designed and manufactured locally
25 mm HF & Hot-Air Overlap Welds – extra strength and durability

Why Customers Love It:

Easy to Install – Fits vehicles with tall tansmission humps and extended centre consoles.
Built to Last – Robust Construction ensures long-term durability.
Flexible Options – Choice of materials to suit different needs and adventures.

What's Included

DW110BDC Bladder - Qty 1
1” (25mm) Skin Fitting & Cap (Inlet) - Qty 1
½” (13mm) Skin Fitting & Hose Kit with 90° Elbow and Cap (Breather)- Qty 1
½” (13mm) Skin Fittings & Hose Kits with 90° Elbow and Tap(Outlets) - Qty 2
RPVC Protective Flap – Qty 2
Teflon Tape – Qty 1
Instruction Sheet – Qty 1
Self-Adhesive Repair Patch – Qty 1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DW110BDC – 110L Box Drinking Water Bladder with Dual Cut-Outs for Large 4WD

$342.86

$342.86 ~~$372.67~~

Dual Cut-Outs – Transmission hump and centre console cut-outs provide a snug, hassle-free fit without blocking seat movement or console access.
Universal Fit – Designed for large SUVs and 4WDs with a rear footwell (door-to-door) length of 1450–1600 mm.
Dual Outlet Fittings – Two 13 mm outlets on each end for easy water access from either side.
Fast, Flexible Filling – Large 25 mm inlet allows hose or bucket filling when off-grid.
Pressure-Safe Filling – Top panel breather prevents over-pressurisation and overflow.
Auto-Adjust Seat Protection – Designed to suit modern vehicles with auto-adjusting seats, reducing contact and pressure on the bladder during seat movement.
Optional Internal Baffle: Reduces water movement for smoother, safer transport, ideal for off-roading, overlanding.
Safe for Drinking Water – AS/NZS 4020:2018 certified; BPA-free and non-toxic.
Compact & Convenient – Large capacity without wasting space. Easy to install, remove, dry, roll up, and store.

Drinking Water Safety

Q: Are the water bladders safe for drinking water? ▼

All our drinking water bladders are made from food‑grade, BPA‑free materials and fully certified to AS/NZS 4020:2018. This ensures long‑term safe water storage without harmful chemicals or taste changes.

Q: What’s the difference between Standard and Extra Heavy‑Duty bladders? ▼

Feature	TPU (Extra Heavy Duty)	PVC (Standard Heavy Duty)
Material	1000 GSM TPU	900–1100 GSM PVC
Drinking Water Safe	✅ AS/NZS 4020:2018 Certified	✅ AS/NZS 4020:2018 Certified
Taste Transfer	Excellent – minimal transfer	Good – may need flushing
Durability	Superior UV, puncture & abrasion resistance	Slightly firmer
Best For	Off‑road, touring & harsh environments	Camping & everyday use
Warranty	2 Years	2 Years

Q: If the bladder is longer or wider than the space, can I still use it? ▼

It depends on the size difference. Bladders are flexible and can bulge upward or compress slightly when filled.

Guideline: If the available space is less than 100 mm smaller than the bladder, it can usually still be used. It may not reach full capacity, but it will still function effectively.

Q: What is a drinking water bladder? ▼

A drinking water bladder is a flexible, collapsible container for safely storing and transporting drinking water. Ideal for vehicles, caravans, boats, camping, 4WD trips, and emergencies.

Filling & Dispensing

Q: How do I fill a drinking water bladder? ▼

Our bladders include two filling options:

1" Top Filler Cap – Fill using a garden hose or container. Acts as a vent but does not prevent overflow.

1/2" Hose with Tap – Can be used for filling and dispensing. Some models include a breather to prevent pressure build‑up.

Examples:
• DW100B: 1" top filler cap only
• DW110B: 1/2" hose with tap + breather
• DWN125BH: Both 1" filler cap + 1/2" hose with tap + breather

Q: How do I dispense water from a bladder? ▼

Open the outlet tap for gravity‑fed flow. For faster flow, gently press the bladder or use a 12 V water pump.

Q: Can the bladder be used for hot water? ▼

No. These bladders are designed for cold or room‑temperature potable water only. Hot liquids may damage the material and compromise water safety.

Other

Q: What do the product model codes mean (e.g., DW200B, GW20BLP)? ▼

A: Our product codes show the type, capacity, and design of the bladder:
DW = Drinking Water Bladder
GW = Grey Water Bladder
Number (e.g., 200, 20) = Approximate capacity in litres
Letters (e.g., B, BLP) = Specific design or shape of the bladder
Examples:
DW200B = Drinking water bladder, ~200 L, design “B” (Box)
GW20BLP = Grey water bladder, ~20 L, design “BLP” (Box Low Profile)

Q: What do the design codes in the product model mean (e.g., B, BC, BH, etc.)? ▼

A: The letters in our product codes indicate the bladder’s design or shape:
B = Box
BC = Box with Centre Console Cutout
BH = Box with Transmission Hump Cutout
BDC = Box with Dual Cutout
BLP = Box Low Profile
H = Hanging Bladder
CBH = Cargo Barrier Hanging Bladder
BMP = Box for Mitsubishi Pajero 3rd Row
DSB = Cargo Storage Drawer System

Take A Closer Look

Make It Yours

Customisation Is What We Do.

Your vision. Our engineering.
Proven results. Tailored solutions designed to fit your exact requirements. We offer flexible customisation across size, materials, dimensions, and configurations. Speak with our team to create a solution built precisely for your application.

Trust & Quality Focused

Australian designed and made in our VIC factory, combining CAD-engineered precision with advanced manufacturing. Built with hands-on expertise and strict quality control for dependable performance in the toughest environments.

Safe for Drinking Water

Our Drinking water bladders are made from materials certified to AS/NZS 4020:2018, meaning they’ve been tested to ensure no harmful substances leach into drinking water or affect taste and odour. The materials used are also BPA-free, giving you added peace of mind for safe water storage.

Care Instructions

Clean with room-temperature water only. Do not use hot water, chemicals, or chlorine based detergents. Before first use, rinse thoroughly with room-temperature water or flush with a mild lemon juice solution several times.

Can’t find the size or shape you need?

We build custom water bladders tailored to your exact capacity, dimensions, and fitting requirements. Whether it’s for a 4x4, boat, or industrial setup, our team can design a solution that fits perfectly

Get in touch to discuss a custom build
