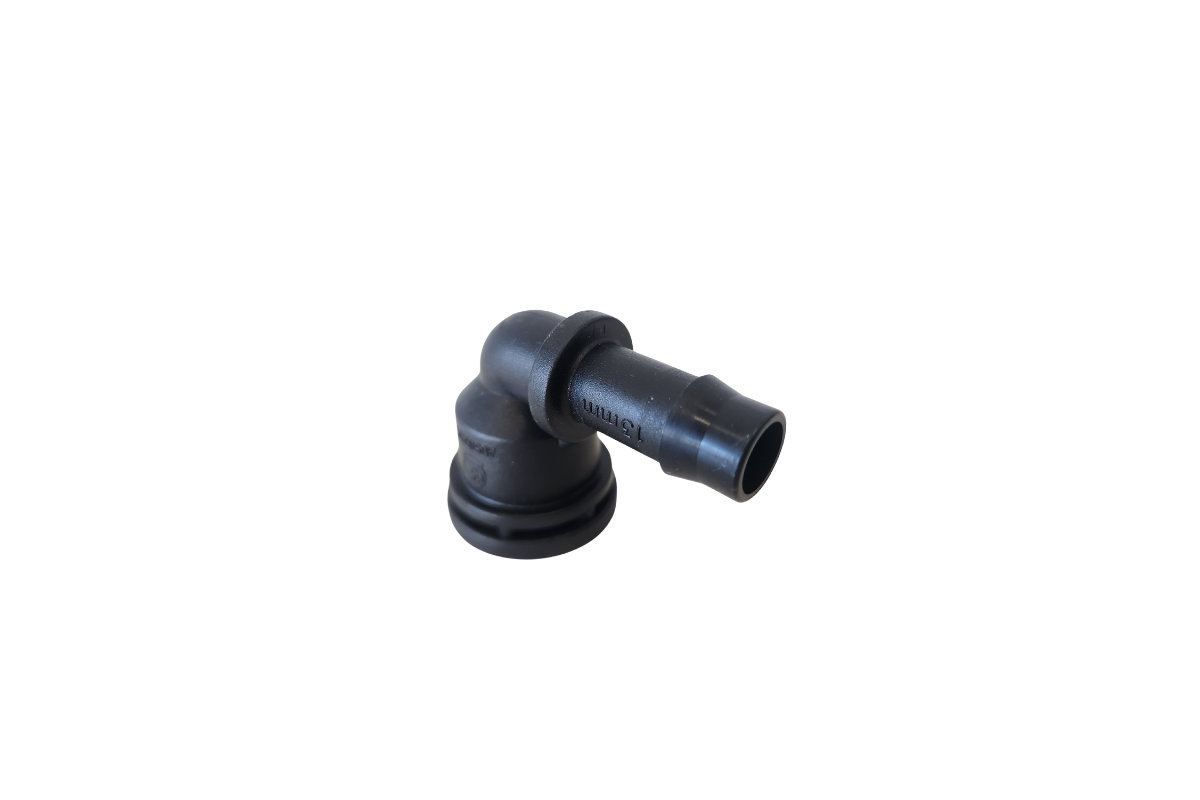

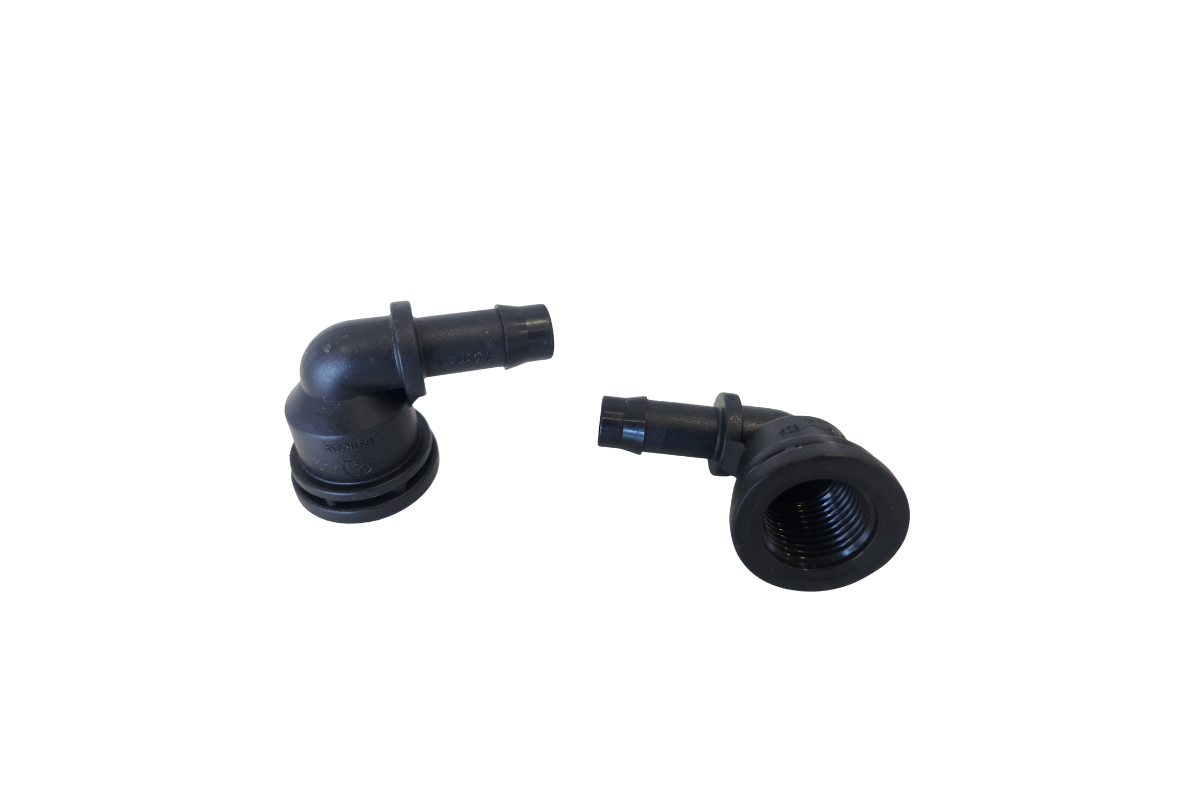

Poly Barbed x Female BSP Elbow 90° – Water Bladder Outlet Fitting
Poly Barbed x Female BSP Elbow 90° – Water Bladder Outlet Fitting
Available in stock (100)
Couldn't load pickup availability
Product Details
Product Details
The Poly Barbed x Female BSP 90° Elbow is designed to connect your water bladder outlet (male BSP) to a hose in tight spaces. Featuring a secure barbed hose tail and precision BSP female thread, it ensures a strong, leak-resistant connection.
Made from UV-stabilised polypropylene, this fitting is durable, weather-resistant, and suitable for potable drinking water (AS/NZS 4020 compliant)—ideal for water storage, transfer, and irrigation applications.
| Specifications | |
|---|---|
| Type: | 90° Elbow (Barbed × Female Thread) |
| Thread: | BSP Female (tapered, precision heavy-duty) |
| Barb End: | Hose tail connection |
| Material: | High-quality polypropylene (PP) |
| UV Resistance: | UV stabilised materials for long service life |
| Temperature Range: | Cold water use up to 60°C |
| Standards: | AS/NZS 4020 – Suitable for potable water |
| Compatibility: |
• Water bladder outlet fittings (Male BSP) |
What's Included
What's Included
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
The Poly Barbed x Female BSP 90° Elbow is designed to connect your water bladder outlet (male BSP) to a hose in tight spaces. Featuring a secure barbed hose tail and precision BSP female thread, it ensures a strong, leak-resistant connection.
Made from UV-stabilised polypropylene, this fitting is durable, weather-resistant, and suitable for potable drinking water (AS/NZS 4020 compliant)—ideal for water storage, transfer, and irrigation applications.
| Specifications | |
|---|---|
| Type: | 90° Elbow (Barbed × Female Thread) |
| Thread: | BSP Female (tapered, precision heavy-duty) |
| Barb End: | Hose tail connection |
| Material: | High-quality polypropylene (PP) |
| UV Resistance: | UV stabilised materials for long service life |
| Temperature Range: | Cold water use up to 60°C |
| Standards: | AS/NZS 4020 – Suitable for potable water |
| Compatibility: |
• Water bladder outlet fittings (Male BSP) |
Australian Standard BSP Fitting Size Chart
| Size Imperial (inch) | Male Fitting EndMetric (mm) | Male/Female Outer(OD) / Inner Dia.(ID) (mm) | Threads Per Inch |
Actual Barb EndOuter Diameter (mm) |
|---|---|---|---|---|
| 3/8″ | 10 | 16.7 / 10.3 | 19 | 10 |
| 1/2″ | 13 | 20.9 / 13.2 | 14 | 13 |
| 3/4″ | 19 | 26.4 / 19.0 | 14 | 19 |
| 1″ | 25 | 33.2 / 25.0 | 11 | 25 |
| 1 1/4″ | 33 | 41.9 / 32.9 | 11 | 32 |
| 1 1/2″ | 38 | 47.8 / 38.6 | 11 | 38 |
| 2″ | 50 | 60.3 / 50.0 | 11 | 51 |
| 2 1/2" | 65 | 75.2 / 66.0 | 11 | 64 |
Technical Definitions
- Size: Size designated to match the ID of Fitting in inches.
-
Male / Female Fitting (OD) (Outer / Inner Diameter):
- Male OD: The actual measurement across the outside of the male threads.
- Female ID: The actual measurement of the inside diameter of a female threaded port
- Threads Per Inch (TPI): The thread pitch, representing the number of individual thread peaks found within a one-inch (25.4mm) section.
- Actual Barb End: The outer diameter of the ribbed section. This should match the Internal Diameter (ID) of your hose.
