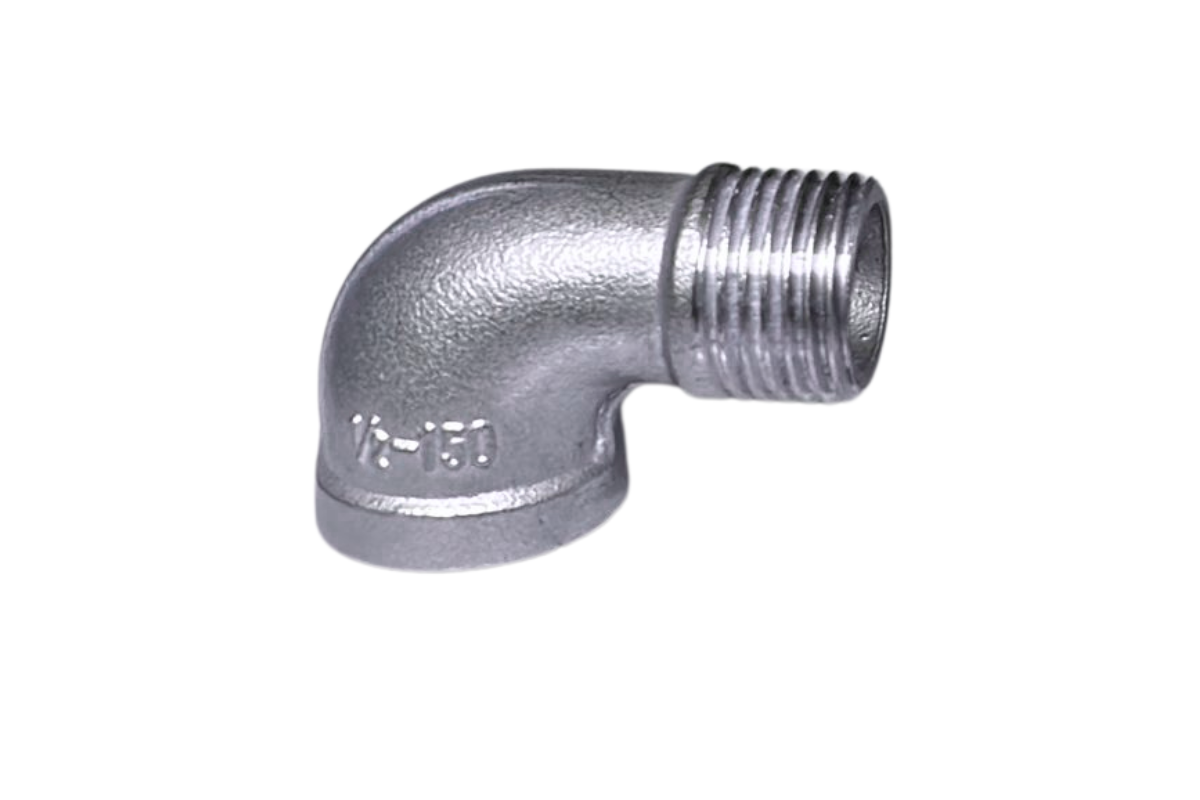

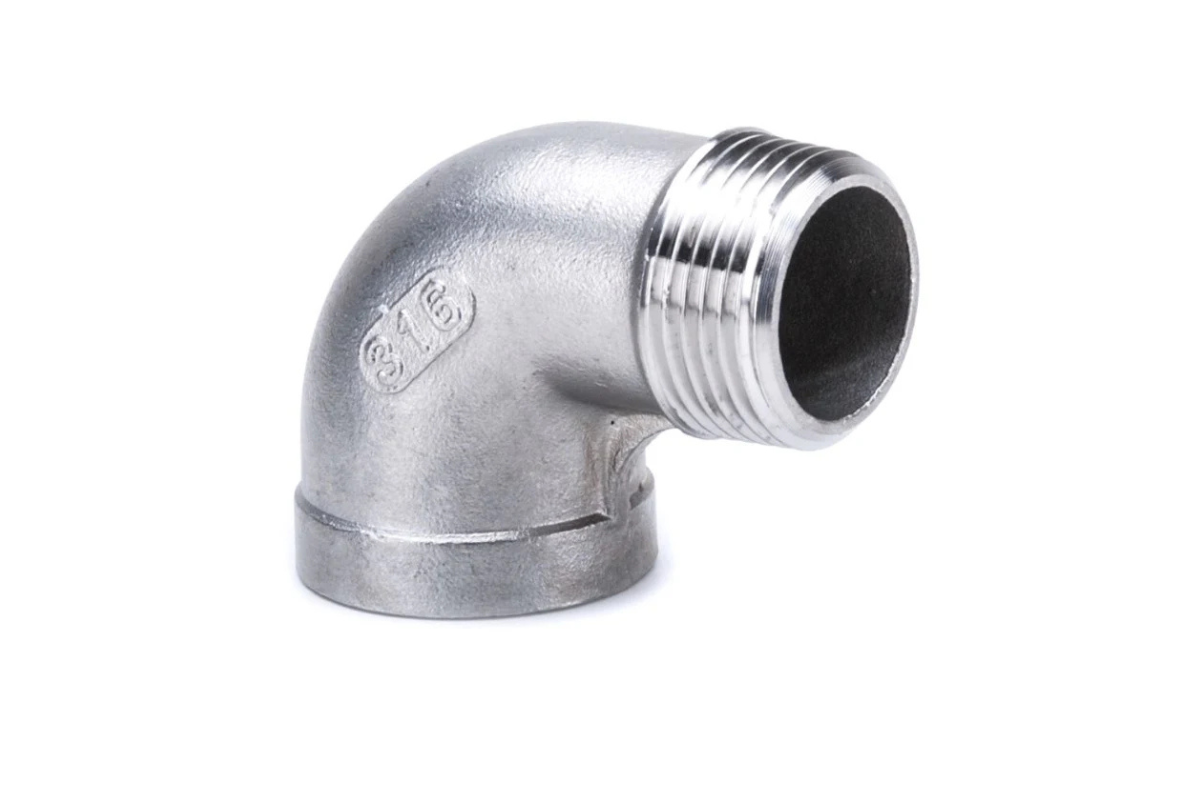

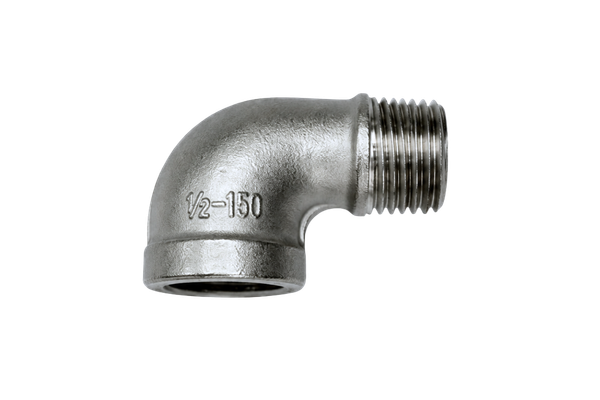

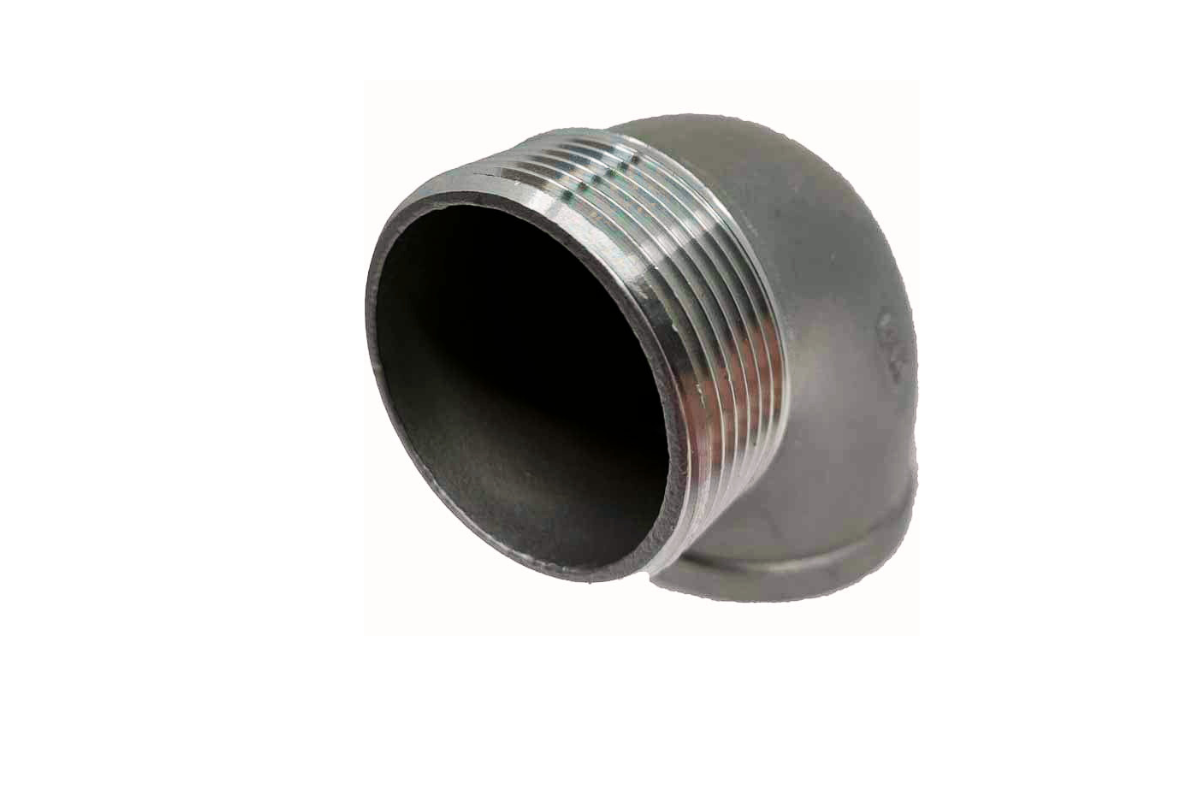

Stainless Steel 316 90° Elbow – Male x Female BSP Fitting
Stainless Steel 316 90° Elbow – Male x Female BSP Fitting
Available in stock (20)
Couldn't load pickup availability
Product Details
Product Details
The Stainless Steel 316 90° Elbow (Male x Female BSP) is a rugged fitting for fuel bladder connections, providing a secure, leak-resistant seal. Made from 316-grade stainless steel, it offers exceptional corrosion and chemical resistance, ideal for harsh fuel environments. Perfect for diesel, petrol, or other fuel transfer applications.
| Specifications | |
|---|---|
| Type: | 90° Elbow 90° (M x F BSP) |
| Thread: | BSP Male x Female |
| Material: | 316 Stainless Steel |
| BSP Threaded Ends: | Yes, precision machined |
| Working Pressure: | 150 psi / 10 bar |
| High Tensile Strength: | Suitable for high-stress systems. |
| Standards: | Industrial-grade, corrosion resistant |
| Compatibility: |
Diesel, petrol, and most fuels |
What's Included
What's Included
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
The Stainless Steel 316 90° Elbow (Male x Female BSP) is a rugged fitting for fuel bladder connections, providing a secure, leak-resistant seal. Made from 316-grade stainless steel, it offers exceptional corrosion and chemical resistance, ideal for harsh fuel environments. Perfect for diesel, petrol, or other fuel transfer applications.
| Specifications | |
|---|---|
| Type: | 90° Elbow 90° (M x F BSP) |
| Thread: | BSP Male x Female |
| Material: | 316 Stainless Steel |
| BSP Threaded Ends: | Yes, precision machined |
| Working Pressure: | 150 psi / 10 bar |
| High Tensile Strength: | Suitable for high-stress systems. |
| Standards: | Industrial-grade, corrosion resistant |
| Compatibility: |
Diesel, petrol, and most fuels |
Australian Standard BSP Fitting Size Chart
| Size Imperial (inch) | Male Fitting EndMetric (mm) | Male/Female Outer(OD) / Inner Dia.(ID) (mm) | Threads Per Inch |
Actual Barb EndOuter Diameter (mm) |
|---|---|---|---|---|
| 3/8″ | 10 | 16.7 / 10.3 | 19 | 10 |
| 1/2″ | 13 | 20.9 / 13.2 | 14 | 13 |
| 3/4″ | 19 | 26.4 / 19.0 | 14 | 19 |
| 1″ | 25 | 33.2 / 25.0 | 11 | 25 |
| 1 1/4″ | 33 | 41.9 / 32.9 | 11 | 32 |
| 1 1/2″ | 38 | 47.8 / 38.6 | 11 | 38 |
| 2″ | 50 | 60.3 / 50.0 | 11 | 51 |
| 2 1/2" | 65 | 75.2 / 66.0 | 11 | 64 |
Technical Definitions
- Size: Size designated to match the ID of Fitting in inches.
-
Male / Female Fitting (OD) (Outer / Inner Diameter):
- Male OD: The actual measurement across the outside of the male threads.
- Female ID: The actual measurement of the inside diameter of a female threaded port
- Threads Per Inch (TPI): The thread pitch, representing the number of individual thread peaks found within a one-inch (25.4mm) section.
- Actual Barb End: The outer diameter of the ribbed section. This should match the Internal Diameter (ID) of your hose.
