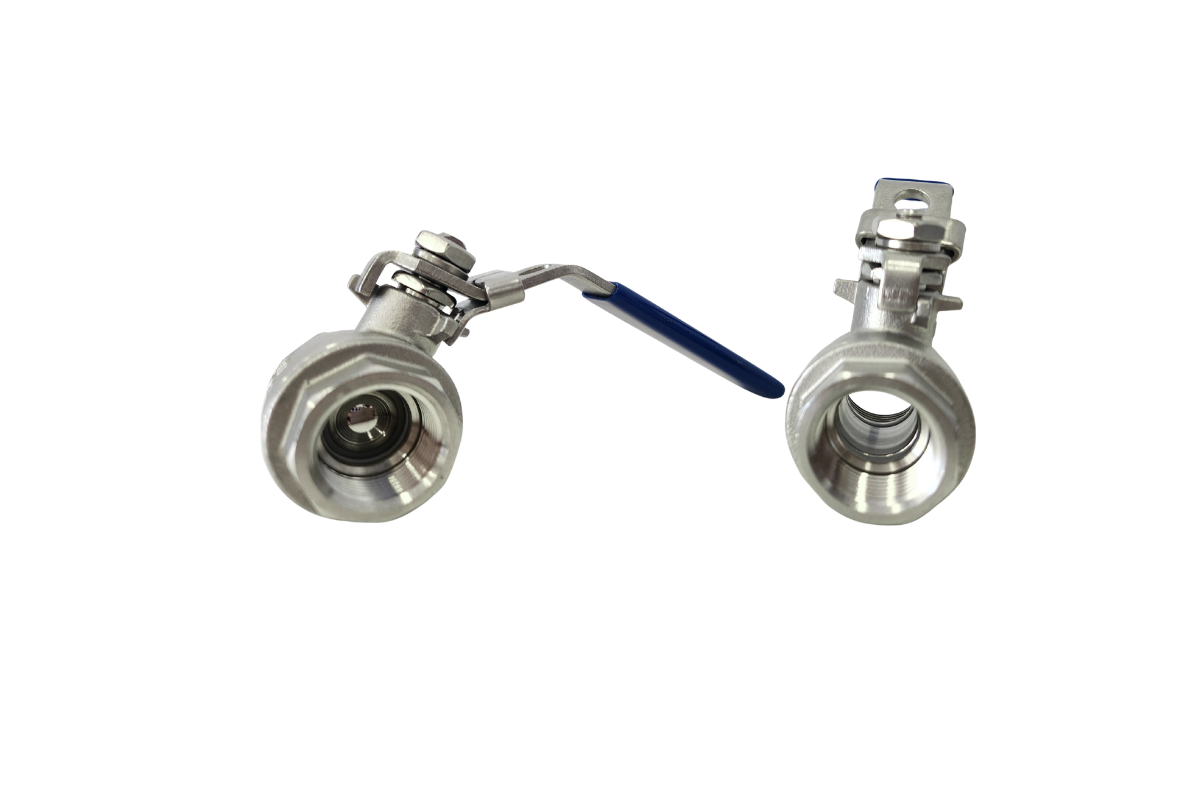

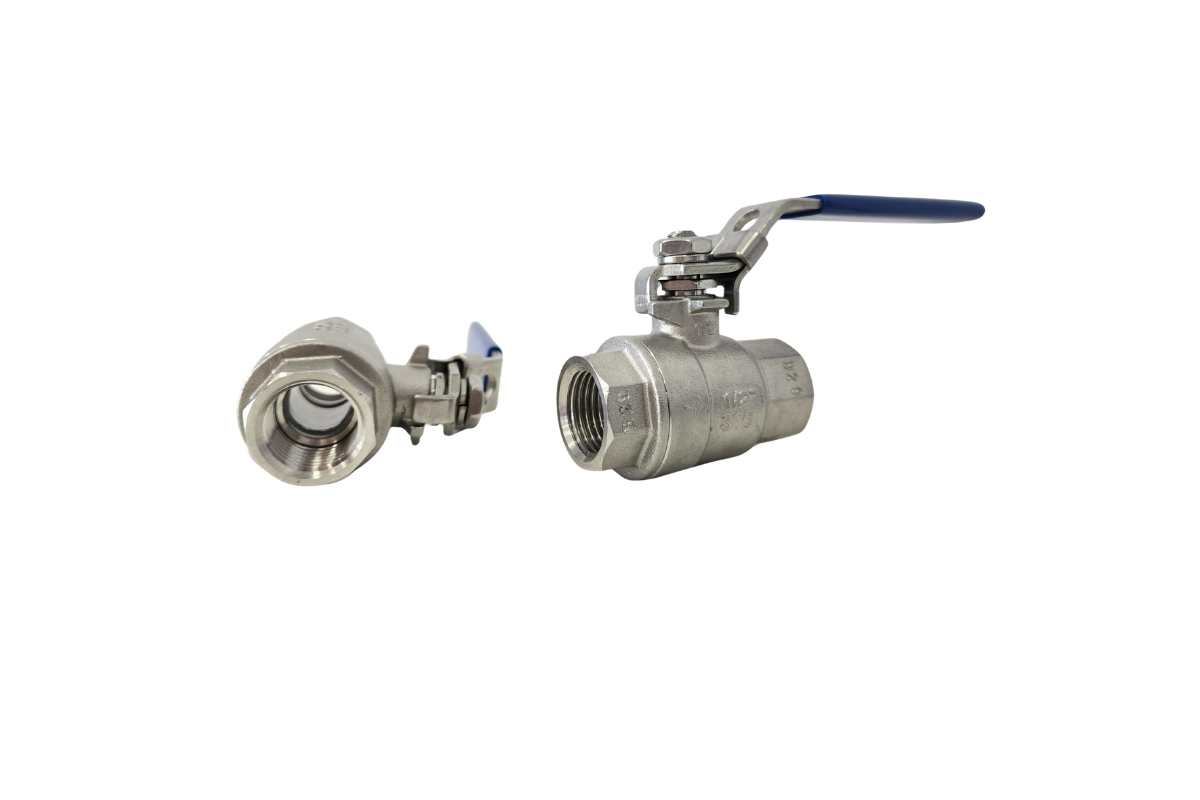

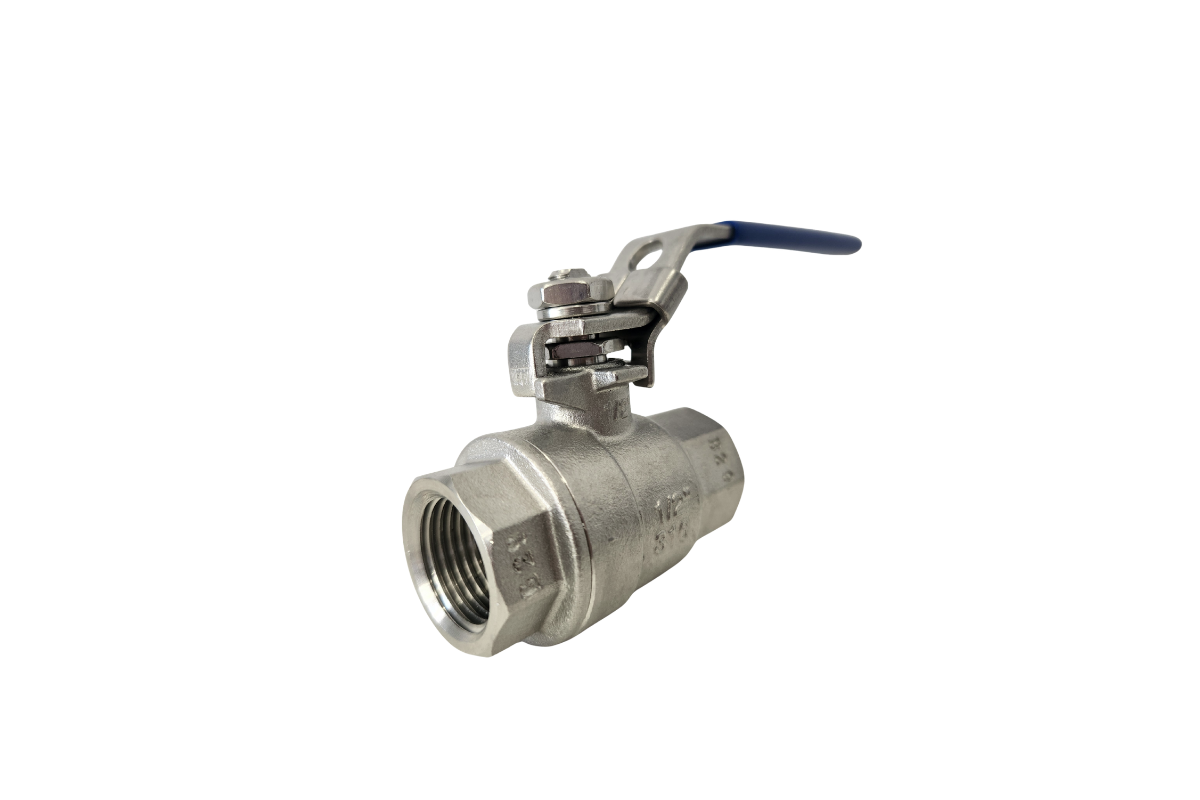

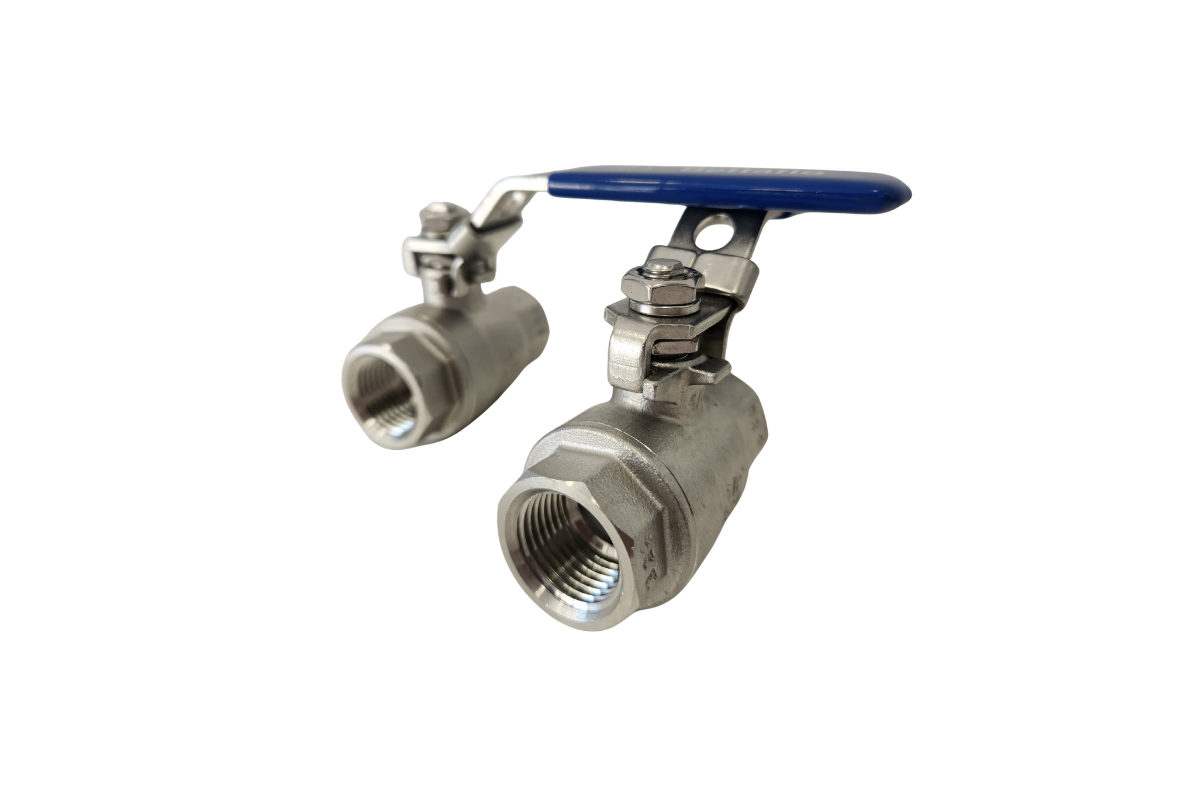

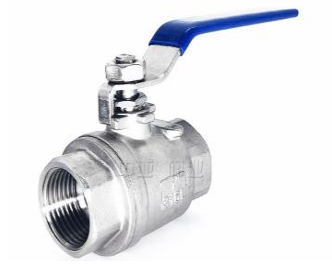

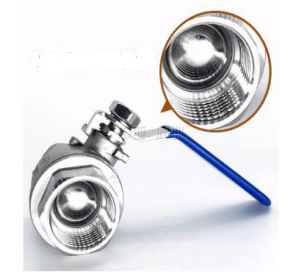

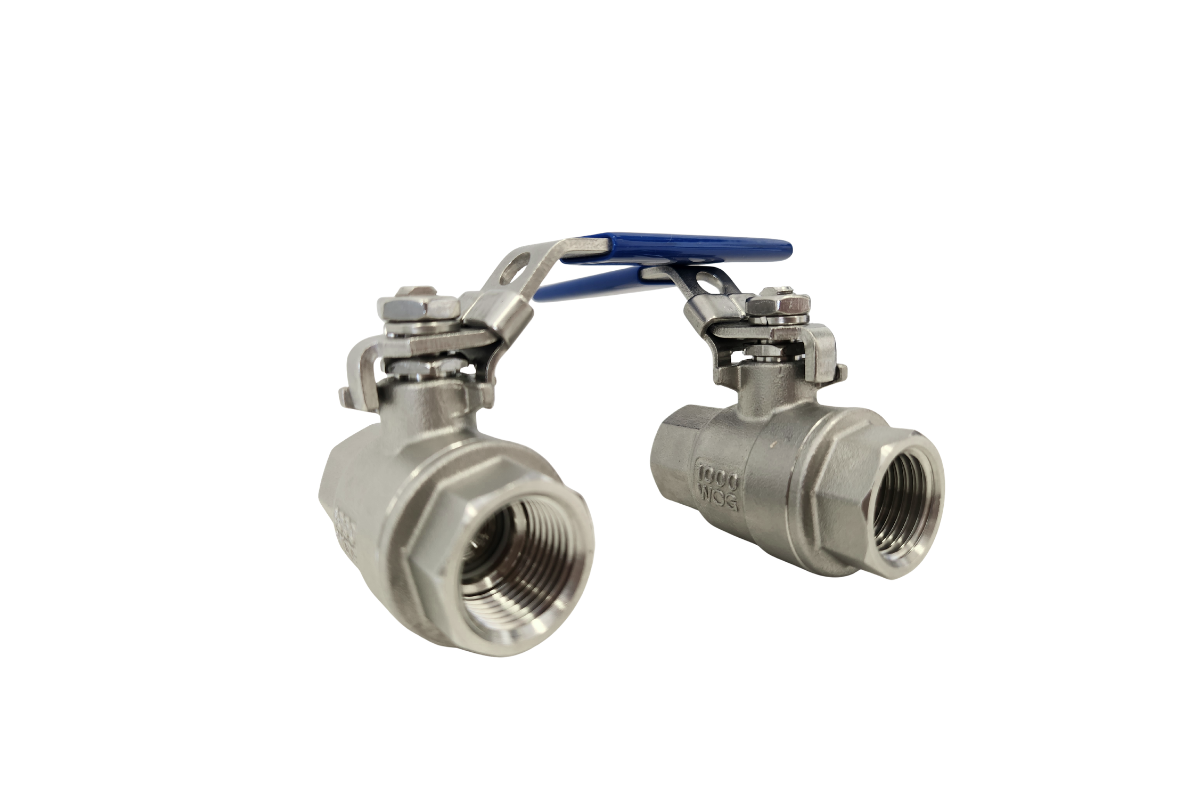

316 Stainless Ball Valve 2PC BSP F/F | Lockable Full Bore
316 Stainless Ball Valve 2PC BSP F/F | Lockable Full Bore
Available in stock (90)
Couldn't load pickup availability
Product Details
Product Details
316 SS Ball Valve 2PC BSP F/F | Lockable
Heavy-duty 316 stainless steel 2-piece ball valve designed for reliable flow control in fuel bladder systems. Features full bore flow, BSP female threads for easy connection, and a lockable lever handle for added safety. Built for durability in fuel, water, and industrial applications with a pressure rating up to 1000 PSI.
| Specifications | |
|---|---|
| Type | 2 Piece Ball Valve |
| Material | 316 Stainless Steel |
| Connection | Female × Female BSP Thread |
| Operation | Lever Handle (Lockable) |
| Bore | Full Bore (Full Port) |
| Pressure Rating | Up to 1000 PSI |
| Suitable For | Diesel, fuel, oil, water, and general fluids |
What's Included
What's Included
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
316 SS Ball Valve 2PC BSP F/F | Lockable
Heavy-duty 316 stainless steel 2-piece ball valve designed for reliable flow control in fuel bladder systems. Features full bore flow, BSP female threads for easy connection, and a lockable lever handle for added safety. Built for durability in fuel, water, and industrial applications with a pressure rating up to 1000 PSI.
| Specifications | |
|---|---|
| Type | 2 Piece Ball Valve |
| Material | 316 Stainless Steel |
| Connection | Female × Female BSP Thread |
| Operation | Lever Handle (Lockable) |
| Bore | Full Bore (Full Port) |
| Pressure Rating | Up to 1000 PSI |
| Suitable For | Diesel, fuel, oil, water, and general fluids |
Australian Standard BSP Fitting Size Chart
| Size Imperial (inch) | Male Fitting EndMetric (mm) | Male/Female Outer(OD) / Inner Dia.(ID) (mm) | Threads Per Inch |
Actual Barb EndOuter Diameter (mm) |
|---|---|---|---|---|
| 3/8″ | 10 | 16.7 / 10.3 | 19 | 10 |
| 1/2″ | 13 | 20.9 / 13.2 | 14 | 13 |
| 3/4″ | 19 | 26.4 / 19.0 | 14 | 19 |
| 1″ | 25 | 33.2 / 25.0 | 11 | 25 |
| 1 1/4″ | 33 | 41.9 / 32.9 | 11 | 32 |
| 1 1/2″ | 38 | 47.8 / 38.6 | 11 | 38 |
| 2″ | 50 | 60.3 / 50.0 | 11 | 51 |
| 2 1/2" | 65 | 75.2 / 66.0 | 11 | 64 |
Technical Definitions
- Size: Size designated to match the ID of Fitting in inches.
-
Male / Female Fitting (OD) (Outer / Inner Diameter):
- Male OD: The actual measurement across the outside of the male threads.
- Female ID: The actual measurement of the inside diameter of a female threaded port
- Threads Per Inch (TPI): The thread pitch, representing the number of individual thread peaks found within a one-inch (25.4mm) section.
- Actual Barb End: The outer diameter of the ribbed section. This should match the Internal Diameter (ID) of your hose.
