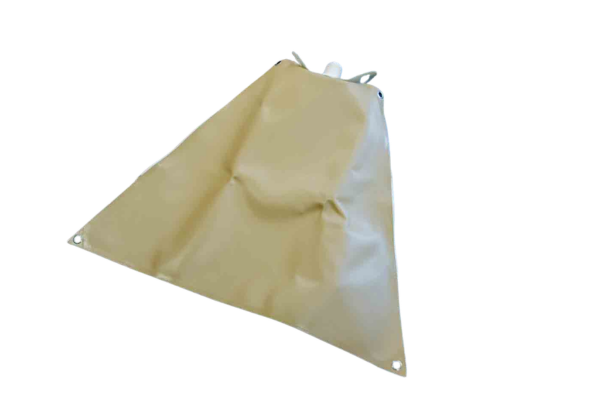

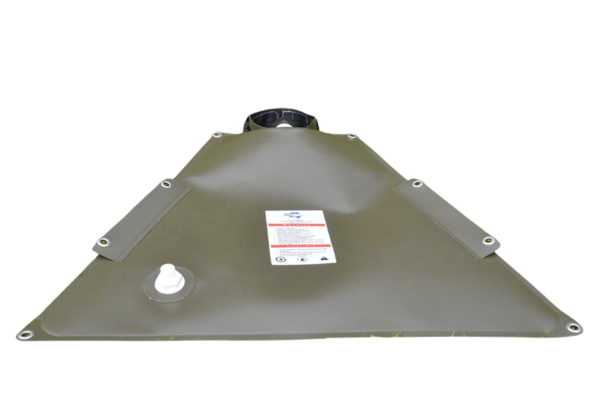

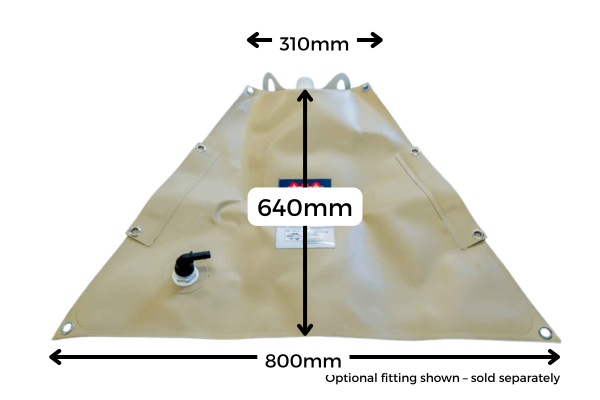

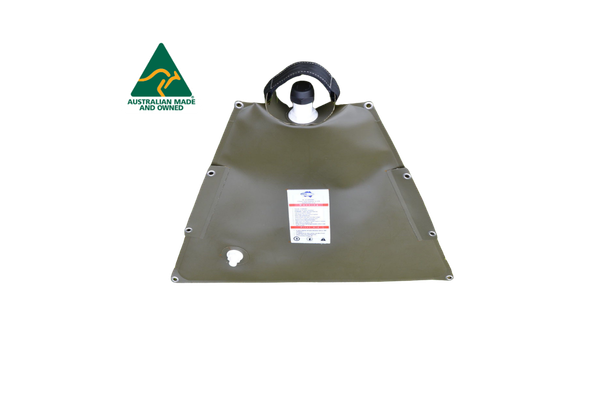

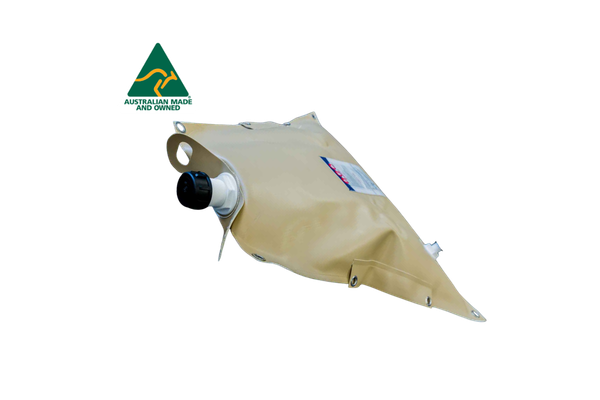

FB20MB 20L Collapsible Triangular Fuel Bladder
The FB20MB's triangular pillow shape is designed to do what rigid tanks can't: slip into corners and awkward spaces on small boats, 4WDs, and trailers, turning wasted space into usable fuel capacity. Whether you're extending your range on the water or heading deep into the outback, the FB20MB gives you the extra fuel you need without taking up more room than necessary.

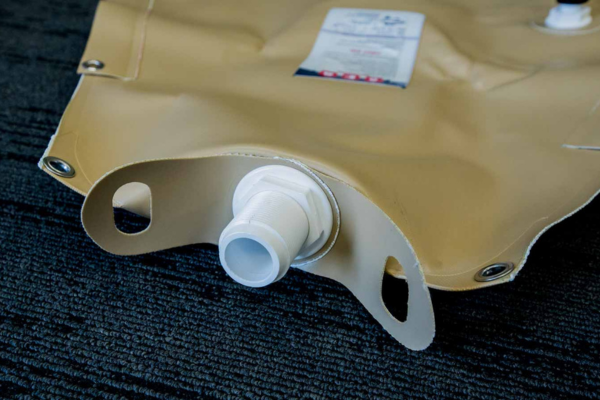

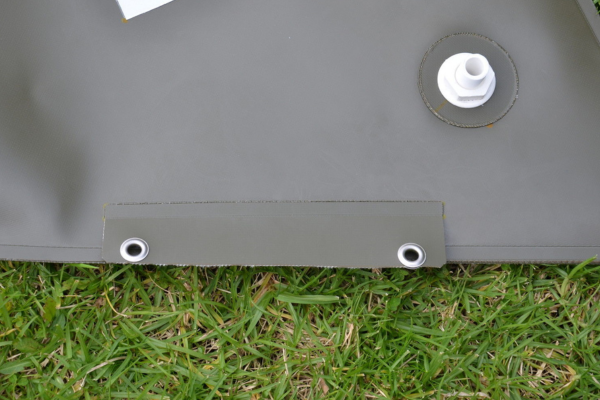

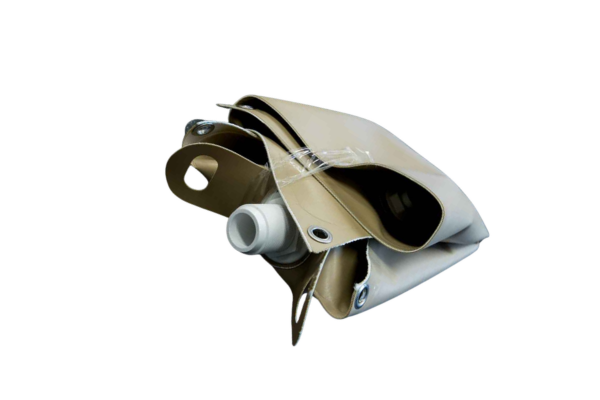

Filling is straightforward — fuel goes in through the 1¼" (32 mm) poly inlet fitting and is dispensed via the ½" (13 mm) poly BSP male outlet. Three reinforced eyelets on each side keep the bladder firmly secured during transit and operation, while the built-in carry handle makes moving it between vehicles or vessels easy. When the tank runs dry, it collapses flat and stows away cleanly until next time.
Built from heavy-duty 1,200 GSM reinforced TPU, the FB20MB is fuel-resistant, UV-stable, and engineered to handle the vibration, salt air, and rugged conditions that come with Australian marine and off-road adventures.
Backed by a 2-year manufacturer warranty.
Specifications
Specifications
What's Included
What's Included
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Fuel Compatibility
• E85 or FlexFuel
• High‑percentage biofuels
• Fuels with aggressive additives
These can damage the material and cause leaks.
Safety & Risk
• Do not pressurise.
• Leave 10% ullage.
• Must be restrained before filling.
• Avoid oxygen/combustibles.
• Bond & ground equipment.
• Work in ventilated areas.
• Keep extinguisher nearby.
Follow AS/NZS 1596 & AS1940.
Usage Instructions
• No smoking or sparks.
• Bond & ground equipment.
• Never mouth‑start a siphon.
• Use explosion‑proof pumps.
• Keep extinguisher nearby.
Gravity Feed
1. Place bladder above tank.
2. Insert ½" hose into outlet.
3. Close filler lid.
4. Press bladder gently.
5. Close valve when near full.
Using a Pump
1. Use explosion‑proof pump.
2. Connect to outlet.
3. Run hose to fuel port.
4. Turn on pump.
5. Monitor level.
6. Turn pump off, then close valve.
Storage & Maintenance
• Close outlet valve.
• Secure bladder.
• Store in shaded, ventilated area.
• Inspect regularly.
• Do not store fuel >90 days.
Designed for Petrol, Diesel, Kerosene, Jet A1 — ideal for boats, IRBs, 4WDs, trucks.
Safety Engineered
Ambient‑pressure storage only. Never pressurise, overfill, or lift when full. Leave 10% ullage. Restrain before filling. Inspect regularly. Follow AS/NZS 1596 & AS1940.
