13mm Barbed to 12mm Female Snap-On Connector
13mm Barbed to 12mm Female Snap-On Connector
Out of stock
Couldn't load pickup availability
Product Details
Product Details
Easy Water Transfer from Bladder to Caravan

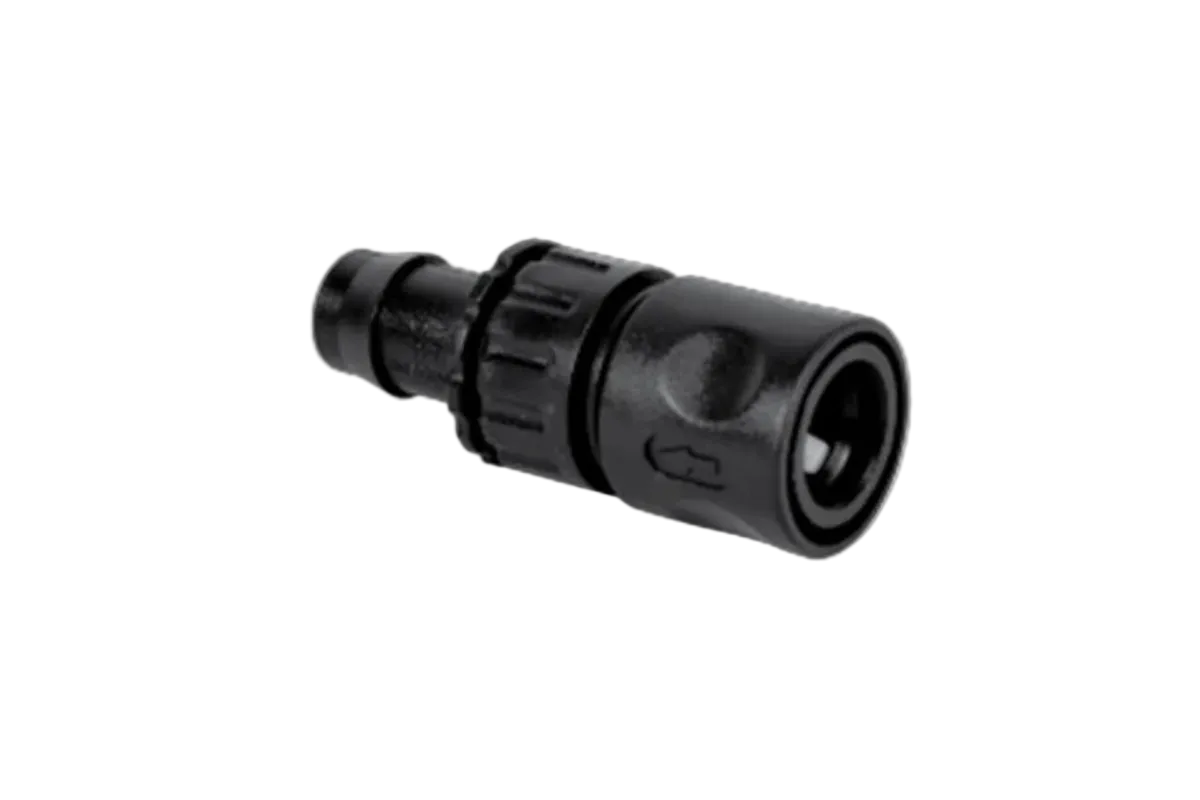

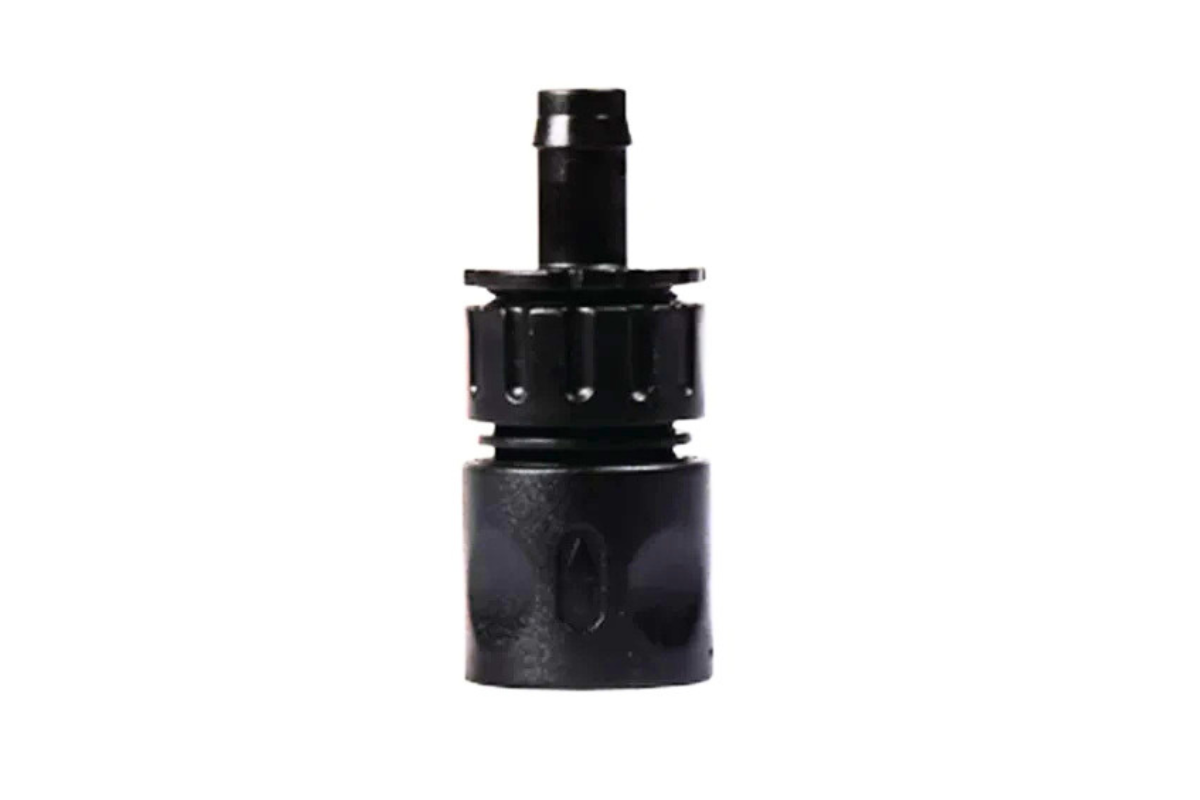

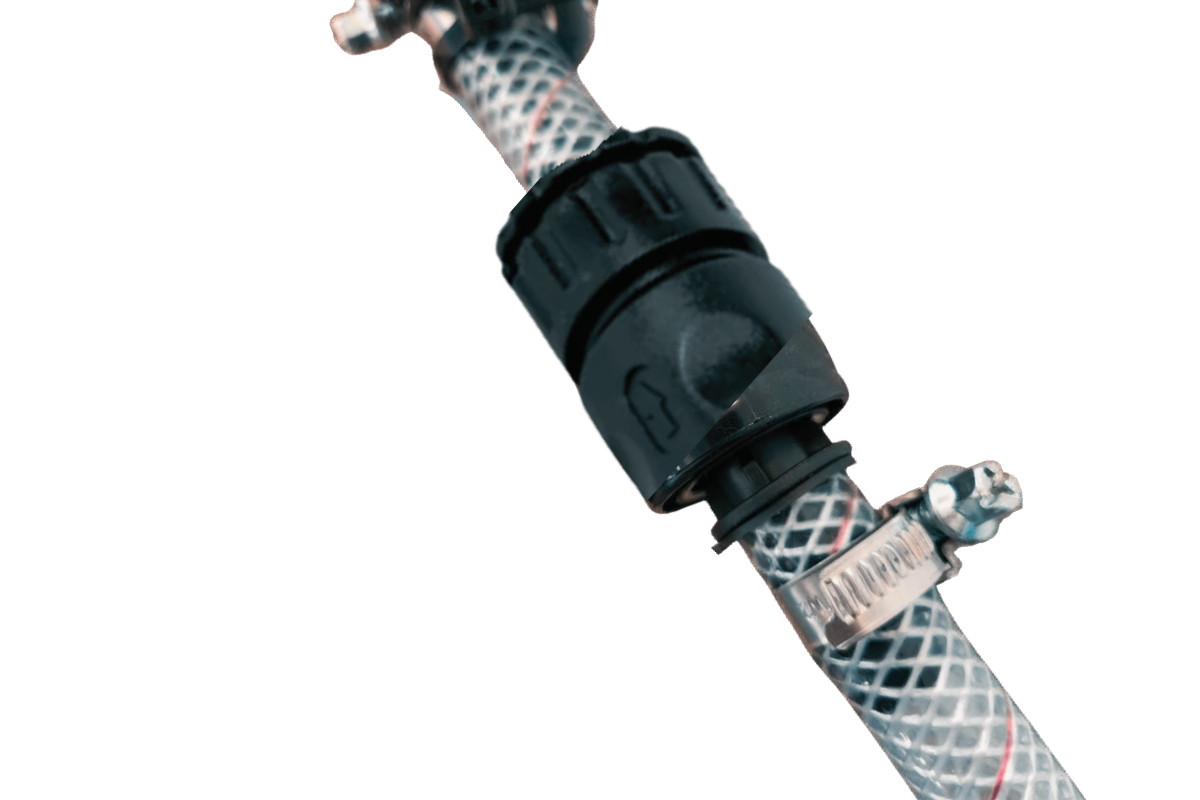

The 13mm Barbed to 12mm Female Snap-On Connector is designed to make connecting poly tubing to your 12mm snap-on fittings quick and simple. Use it with your 13mm Barb to 12mm Male Snap-On Connector to transfer water from your bladder to your caravan, camper, or tank system effortlessly. UV stabilised for long-lasting outdoor use.
| Specifications | |
|---|---|
| Product Type: | Barbed to Female Snap-On Connector |
| Barb Size: | 13mm (1/2") |
| Connector Type: | 12mm Quick Connect ( Snap-On) |
| Material: | UV stabilised plastic |
| UV Resistant: | Yes |
| Use: | Connect poly hose to 12mm snap-on fittings; pairs with male snap-on connector for water transfer |
What's Included
What's Included
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Easy Water Transfer from Bladder to Caravan
The 13mm Barbed to 12mm Female Snap-On Connector is designed to make connecting poly tubing to your 12mm snap-on fittings quick and simple. Use it with your 13mm Barb to 12mm Male Snap-On Connector to transfer water from your bladder to your caravan, camper, or tank system effortlessly. UV stabilised for long-lasting outdoor use.
| Specifications | |
|---|---|
| Product Type: | Barbed to Female Snap-On Connector |
| Barb Size: | 13mm (1/2") |
| Connector Type: | 12mm Quick Connect ( Snap-On) |
| Material: | UV stabilised plastic |
| UV Resistant: | Yes |
| Use: | Connect poly hose to 12mm snap-on fittings; pairs with male snap-on connector for water transfer |
Australian Standard BSP Fitting Size Chart
| Size Imperial (inch) | Male Fitting EndMetric (mm) | Male/Female Outer(OD) / Inner Dia.(ID) (mm) | Threads Per Inch |
Actual Barb EndOuter Diameter (mm) |
|---|---|---|---|---|
| 3/8″ | 10 | 16.7 / 10.3 | 19 | 10 |
| 1/2″ | 13 | 20.9 / 13.2 | 14 | 13 |
| 3/4″ | 19 | 26.4 / 19.0 | 14 | 19 |
| 1″ | 25 | 33.2 / 25.0 | 11 | 25 |
| 1 1/4″ | 33 | 41.9 / 32.9 | 11 | 32 |
| 1 1/2″ | 38 | 47.8 / 38.6 | 11 | 38 |
| 2″ | 50 | 60.3 / 50.0 | 11 | 51 |
| 2 1/2" | 65 | 75.2 / 66.0 | 11 | 64 |
Technical Definitions
- Size: Size designated to match the ID of Fitting in inches.
-
Male / Female Fitting (OD) (Outer / Inner Diameter):
- Male OD: The actual measurement across the outside of the male threads.
- Female ID: The actual measurement of the inside diameter of a female threaded port
- Threads Per Inch (TPI): The thread pitch, representing the number of individual thread peaks found within a one-inch (25.4mm) section.
- Actual Barb End: The outer diameter of the ribbed section. This should match the Internal Diameter (ID) of your hose.
