12V High Pressure Water Pump PWP-17P - 17L/min
12V High Pressure Water Pump PWP-17P - 17L/min
Available in stock (88)
Couldn't load pickup availability
Product Details
Product Details
Automatic Pressure Water Pump for Caravan, RV, 4x4 & Marine
Need water pressure that holds steady even when you're running more than one tap at once? The PWP-17P is Fleximake's 12V pressure pump — built for setups where the pump has to cycle on and off, again and again, without missing a beat.
Up to 17L/min. Up to 40 PSI. Consistent pressure. Built for the long haul.
The PWP-17P shares the same high-flow performance as our PWP-17 transfer pump, but with one key upgrade: a heavy-duty pressure switch engineered specifically for pressurised systems and frequent cycling. That means it's the pump to reach for when you're running a shower, sink, and toilet off the same system — not just moving water from A to B.
The PWP-17P 12V Pressure Water Pump is a powerful, high-flow solution designed for reliable water delivery in demanding environments. With a flow rate of up to 17 litres per minute and a built-in automatic pressure switch, this pump delivers consistent water pressure exactly when you need it.
Perfect for caravans, RVs, 4WD setups, boats, camping, and agricultural use, the PWP-17P can comfortably run multiple outlets at once, including showers, sinks, and even toilets. Whether you're washing your vehicle, supplying a live bait tank, or managing water transfer, this pump is built to perform.
Designed with durability in mind, it features a four-chamber diaphragm system, thermal overload protection, and dry-run capability, ensuring long service life even in tough Australian conditions.
Not sure which pump you need?
- PWP-17 (Transfer Pump) — best for single-outlet jobs like general water transfer.
- PWP-17P (Pressure Pump) — best for pressurised, multi-outlet setups with frequent cycling, like caravan and RV plumbing systems.

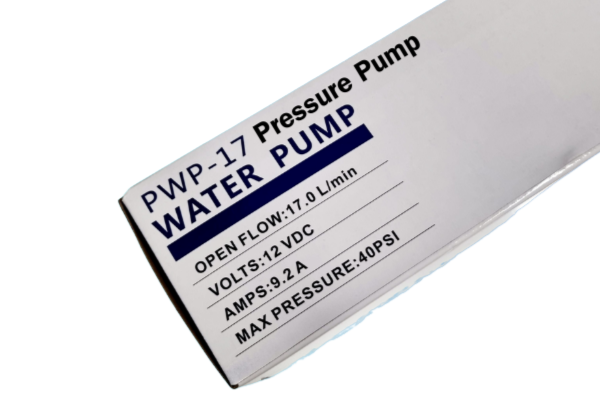

| Features & Specifications | |
|---|---|
| Performance & Power | |
| Flow Rate | 17 L/min (High Flow) |
| Voltage | 12V DC |
| Max Current | 9.2 Amps |
| Max Pressure | 40 PSI (Auto Cut-Off) |
| Max Water Temperature | 60°C |
| Pump Design | |
| Pump Type | 4-Chamber Diaphragm (Positive Displacement) |
| Motor | Permanent Magnet with Dual Ball Bearings (Salt Resistant) |
| Self-Priming | Up to 2 m suction lift |
| Dry Run Capable | Yes (safe operation without water) |
| Ease of Use | |
| Automatic Pressure Switch | Turns on/off with tap |
| Noise | Quiet operation (low noise) |
| Mounting | Any orientation |
| Quick Connect Ports | Easy installation & removal |
| Durability & Safety | |
| Thermal Overload Protection | Prevents overheating |
| Drinking Water Safe | Yes (potable safe) |
| Salt Water Compatible | Yes |
| Chemical Resistance | Handles light agricultural chemicals |
| Connections & Fittings | |
| Inlet/Outlet Type | Quick Connect System |

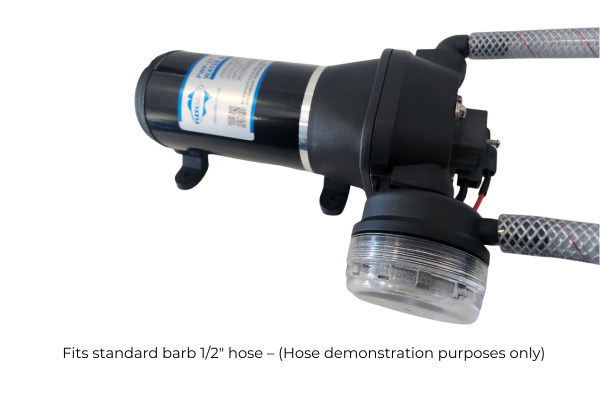

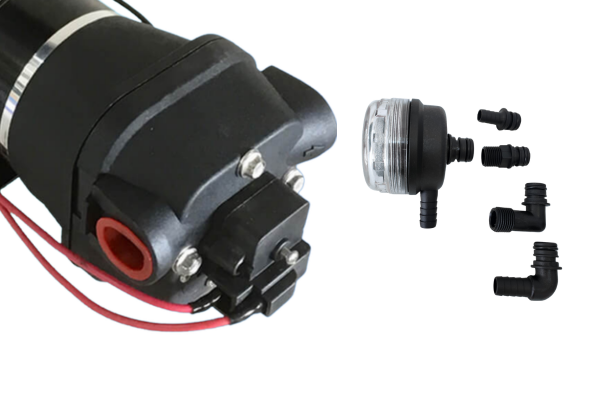

| Included Sizes | • (1/2") Hose Barb Straight • (1/2") Hose Barb 90° Elbow • (1/2") Male Threaded Straight • (1/2") Male Threaded 90° Elbow |
| Filter / Strainer | Included (recommended for dirty water use) |
| Physical Details | |
| Dimensions | 252 × 100 × 93 mm (Approx.) |
| Weight | 2.6 kg |
| Warranty | 12 Months |

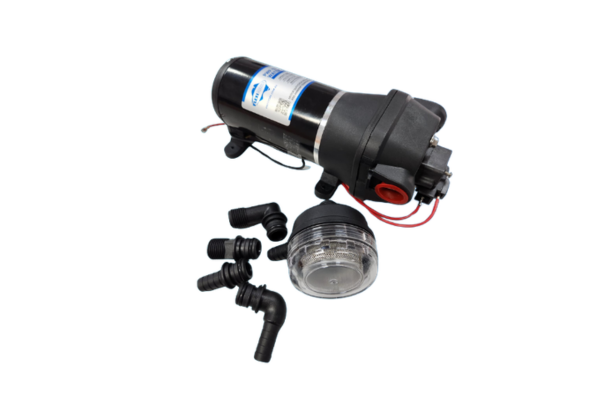

What's Included
What's Included
Applications
Applications
Documents
Documents
Download product documentation:
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Automatic Pressure Water Pump for Caravan, RV, 4x4 & Marine
Need water pressure that holds steady even when you're running more than one tap at once? The PWP-17P is Fleximake's 12V pressure pump — built for setups where the pump has to cycle on and off, again and again, without missing a beat.
Up to 17L/min. Up to 40 PSI. Consistent pressure. Built for the long haul.
The PWP-17P shares the same high-flow performance as our PWP-17 transfer pump, but with one key upgrade: a heavy-duty pressure switch engineered specifically for pressurised systems and frequent cycling. That means it's the pump to reach for when you're running a shower, sink, and toilet off the same system — not just moving water from A to B.
The PWP-17P 12V Pressure Water Pump is a powerful, high-flow solution designed for reliable water delivery in demanding environments. With a flow rate of up to 17 litres per minute and a built-in automatic pressure switch, this pump delivers consistent water pressure exactly when you need it.
Perfect for caravans, RVs, 4WD setups, boats, camping, and agricultural use, the PWP-17P can comfortably run multiple outlets at once, including showers, sinks, and even toilets. Whether you're washing your vehicle, supplying a live bait tank, or managing water transfer, this pump is built to perform.
Designed with durability in mind, it features a four-chamber diaphragm system, thermal overload protection, and dry-run capability, ensuring long service life even in tough Australian conditions.
Not sure which pump you need?
- PWP-17 (Transfer Pump) — best for single-outlet jobs like general water transfer.
- PWP-17P (Pressure Pump) — best for pressurised, multi-outlet setups with frequent cycling, like caravan and RV plumbing systems.
| Features & Specifications | |
|---|---|
| Performance & Power | |
| Flow Rate | 17 L/min (High Flow) |
| Voltage | 12V DC |
| Max Current | 9.2 Amps |
| Max Pressure | 40 PSI (Auto Cut-Off) |
| Max Water Temperature | 60°C |
| Pump Design | |
| Pump Type | 4-Chamber Diaphragm (Positive Displacement) |
| Motor | Permanent Magnet with Dual Ball Bearings (Salt Resistant) |
| Self-Priming | Up to 2 m suction lift |
| Dry Run Capable | Yes (safe operation without water) |
| Ease of Use | |
| Automatic Pressure Switch | Turns on/off with tap |
| Noise | Quiet operation (low noise) |
| Mounting | Any orientation |
| Quick Connect Ports | Easy installation & removal |
| Durability & Safety | |
| Thermal Overload Protection | Prevents overheating |
| Drinking Water Safe | Yes (potable safe) |
| Salt Water Compatible | Yes |
| Chemical Resistance | Handles light agricultural chemicals |
| Connections & Fittings | |
| Inlet/Outlet Type | Quick Connect System |
| Included Sizes | • (1/2") Hose Barb Straight • (1/2") Hose Barb 90° Elbow • (1/2") Male Threaded Straight • (1/2") Male Threaded 90° Elbow |
| Filter / Strainer | Included (recommended for dirty water use) |
| Physical Details | |
| Dimensions | 252 × 100 × 93 mm (Approx.) |
| Weight | 2.6 kg |
| Warranty | 12 Months |
Water Transfer & Caravan Filling
• Water bladders
• Jerry cans
• Drums
• Portable tanks
Into your caravan, camper trailer, motorhome, or RV tank — no more lifting heavy containers or relying on gravity.
• Fastest and best all‑round performance
• Ideal for most caravan and 4WD travellers
PWP-06 (Simple & Efficient)
• Low power draw
• Best for occasional use or smaller setups
• Quiet and lightweight
PWP-17P (Permanent Caravan Setup)
• Designed for fixed caravan plumbing
• Runs taps, shower, and kitchen sink
• Automatically starts and stops
For best performance:
• Keep pump close to water source
• Use short inlet hose
• Ensure tight, air‑free connections
PWP‑17P: Should not be run dry for long periods.
Tip: You'll hear a change in sound before water runs out.
PWP‑06 & PWP‑17: Must be turned off manually.
Best practice: Always monitor filling for safety.
| Volume | PWP‑06 | PWP‑17 / PWP‑17P |
|---|---|---|
| 50L | ~8–9 min | ~3 min |
| 100L | ~16–17 min | ~6 min |
| 150L | ~25 min | ~9 min |
• PWP‑17 / PWP‑17P: 19mm (3/4") hose for maximum flow
Rubber mounting reduces vibration significantly.
For best results:
• Use rubber vibration mounts
• Mount on solid surface
• Avoid thin sheet metal
For best hygiene:
• Use food‑grade hoses
• Flush system before first use
• Clean filter regularly
• Fill bladder: Water source → Pump → Bladder
• Fill caravan tank: Bladder → Pump → Caravan tank
• Transfer between tanks: Any full tank → Pump → Any empty tank
With our 13mm Barbed to 12mm Snap‑On Connectors, you can swap jobs in under 5 seconds.
Pro tip: Buy 2× female connectors (pump inlet + outlet) and 3× male connectors (bladder hose, tank hose, shower hose).
Switch water direction by turning a valve instead of touching hoses.
Off‑Road & Camping Use
Useful when:
• Water pressure is low
• Bladder is far from tap
• Faster filling is needed
• 4WD touring
• Caravan travel
• Beach camping
• Overlanding
• Remote campsites
• Long off‑grid trips
Recommended:
• Use supplied inlet strainer
• Add inline filter for creek/bore water
• Clean after each use
⚠️ Avoid pumping sand, mud, or heavy sediment.
| Use Case | Best Choice |
|---|---|
| Occasional camping | PWP‑06 |
| Fast water transfer | PWP‑17 |
| Permanent caravan system | PWP‑17P |
| Running taps & shower | PWP‑17P |
| Heavy off‑grid touring | PWP‑17 |
| Lightweight setup | PWP‑06 |
A pump is faster, more reliable, and works anywhere.
• Flush with clean water after use
• Clean inlet filter regularly
• Avoid dry running
• Store in a dry place
• Check hose fittings before trips
• Fast transfer (17L/min)
• Strong enough for caravans, farms, marine, emergency use
• Best balance of power & versatility
PWP‑06 – Lightweight everyday use
• Low power draw (6A)
• Great for small jobs & camping
• Quiet and battery‑friendly
PWP‑17P – Permanent caravan system
• Designed for fixed plumbing
• Runs taps, showers, sinks automatically
• Best for caravans & camper trailers
