12V High Flow Transfer Pump PWP-17 – 17L/min
12V High Flow Transfer Pump PWP-17 – 17L/min
Available in stock (200)
Couldn't load pickup availability
Product Details
Product Details
Effortlessly move up to 17 litres of water per minute with the Fleximake PWP-17 12V Water Pump, designed for fast, reliable water transfer wherever you go. Perfect for camping, caravanning, 4×4 adventures, marine activities, irrigation, flood control, and more, this pump combines power, versatility, and convenience in a compact, durable design.
With its automatic pressure cut-off switch, the PWP-17 turns on and off with your tap or valve, making water distribution simple and energy-efficient. For pressurised setups or frequent cycling, we recommend the PWP-17P diaphragm pressure pump to extend the lifespan of your system.
| Specifications & Features | |
|---|---|
| Flow Rate | 17 L/min – ideal for high-flow applications |
| Voltage / Max Current | 12V DC | Max Current: 9.2A |
| Max Pressure / Temperature | Max Pressure (Cut-Off): 40 PSI | Max Water Temp: 60°C |
| Self-Priming | Up to 2 m suction lift |
| Pump Type | Four-chamber diaphragm positive displacement |
| Motor | Permanent magnet with front/rear ball bearings, salt-resistant |
| Mounting /Weight / Dimensions | Any orientation | Weight: 2.6 kg | 252 × 100 × 93 mm |

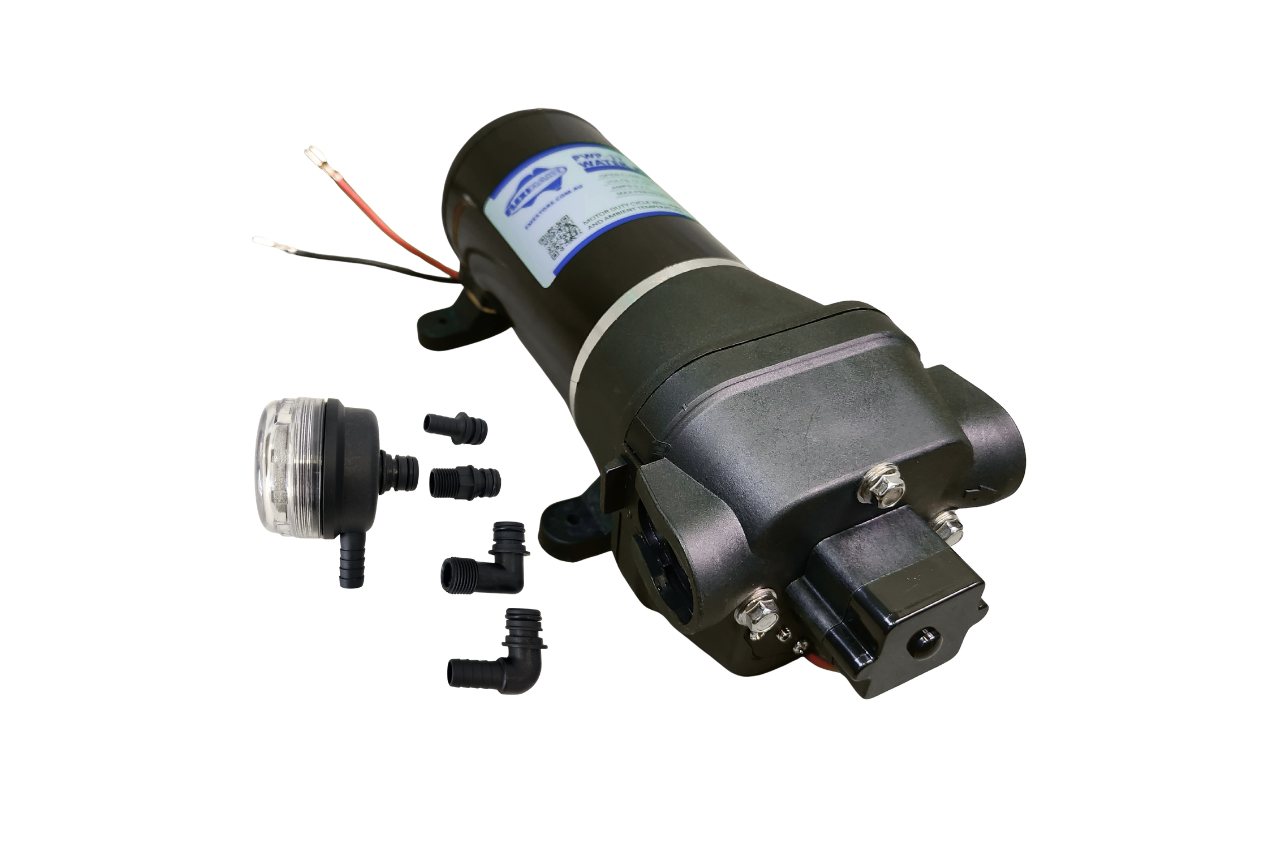

| Inlet/Outlet Ports & Fittings | • 13 mm (1/2”) Hose Barb Straight • 13 mm (1/2”) Hose Barb 90° Elbow • 20 mm (3/4”) Threaded Straight • 20 mm (3/4”) Threaded 90° Elbow • 13 mm (1/2”) Hose Barb Filter Unit |
| Additional Features | • Thermal Overload Protection – prevents overheating • Self-Priming – easy to operate from low water source • Dry Run Safety – runs safely without water for short periods • Potable & Salt Water Compatible – safe for drinking water & agriculture • Quiet Operation – minimal noise • Versatile & Durable – built to last in diverse environments |
| Warranty | 12 Months |
What's Included
What's Included
Applications
Applications
Documents
Documents
Download product documentation:
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Effortlessly move up to 17 litres of water per minute with the Fleximake PWP-17 12V Water Pump, designed for fast, reliable water transfer wherever you go. Perfect for camping, caravanning, 4×4 adventures, marine activities, irrigation, flood control, and more, this pump combines power, versatility, and convenience in a compact, durable design.
With its automatic pressure cut-off switch, the PWP-17 turns on and off with your tap or valve, making water distribution simple and energy-efficient. For pressurised setups or frequent cycling, we recommend the PWP-17P diaphragm pressure pump to extend the lifespan of your system.
| Specifications & Features | |
|---|---|
| Flow Rate | 17 L/min – ideal for high-flow applications |
| Voltage / Max Current | 12V DC | Max Current: 9.2A |
| Max Pressure / Temperature | Max Pressure (Cut-Off): 40 PSI | Max Water Temp: 60°C |
| Self-Priming | Up to 2 m suction lift |
| Pump Type | Four-chamber diaphragm positive displacement |
| Motor | Permanent magnet with front/rear ball bearings, salt-resistant |
| Mounting /Weight / Dimensions | Any orientation | Weight: 2.6 kg | 252 × 100 × 93 mm |
| Inlet/Outlet Ports & Fittings | • 13 mm (1/2”) Hose Barb Straight • 13 mm (1/2”) Hose Barb 90° Elbow • 20 mm (3/4”) Threaded Straight • 20 mm (3/4”) Threaded 90° Elbow • 13 mm (1/2”) Hose Barb Filter Unit |
| Additional Features | • Thermal Overload Protection – prevents overheating • Self-Priming – easy to operate from low water source • Dry Run Safety – runs safely without water for short periods • Potable & Salt Water Compatible – safe for drinking water & agriculture • Quiet Operation – minimal noise • Versatile & Durable – built to last in diverse environments |
| Warranty | 12 Months |
Water Transfer & Caravan Filling
• Water bladders
• Jerry cans
• Drums
• Portable tanks
Into your caravan, camper trailer, motorhome, or RV tank — no more lifting heavy containers or relying on gravity.
• Fastest and best all‑round performance
• Ideal for most caravan and 4WD travellers
PWP-06 (Simple & Efficient)
• Low power draw
• Best for occasional use or smaller setups
• Quiet and lightweight
PWP-17P (Permanent Caravan Setup)
• Designed for fixed caravan plumbing
• Runs taps, shower, and kitchen sink
• Automatically starts and stops
For best performance:
• Keep pump close to water source
• Use short inlet hose
• Ensure tight, air‑free connections
PWP‑17P: Should not be run dry for long periods.
Tip: You'll hear a change in sound before water runs out.
PWP‑06 & PWP‑17: Must be turned off manually.
Best practice: Always monitor filling for safety.
| Volume | PWP‑06 | PWP‑17 / PWP‑17P |
|---|---|---|
| 50L | ~8–9 min | ~3 min |
| 100L | ~16–17 min | ~6 min |
| 150L | ~25 min | ~9 min |
• PWP‑17 / PWP‑17P: 19mm (3/4") hose for maximum flow
Rubber mounting reduces vibration significantly.
For best results:
• Use rubber vibration mounts
• Mount on solid surface
• Avoid thin sheet metal
For best hygiene:
• Use food‑grade hoses
• Flush system before first use
• Clean filter regularly
• Fill bladder: Water source → Pump → Bladder
• Fill caravan tank: Bladder → Pump → Caravan tank
• Transfer between tanks: Any full tank → Pump → Any empty tank
With our 13mm Barbed to 12mm Snap‑On Connectors, you can swap jobs in under 5 seconds.
Pro tip: Buy 2× female connectors (pump inlet + outlet) and 3× male connectors (bladder hose, tank hose, shower hose).
Switch water direction by turning a valve instead of touching hoses.
Off‑Road & Camping Use
Useful when:
• Water pressure is low
• Bladder is far from tap
• Faster filling is needed
• 4WD touring
• Caravan travel
• Beach camping
• Overlanding
• Remote campsites
• Long off‑grid trips
Recommended:

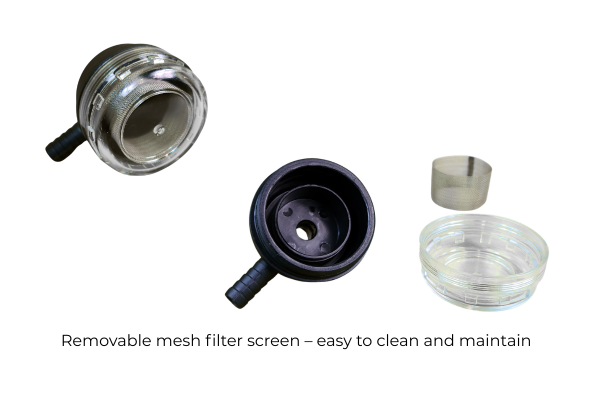

• Use supplied inlet strainer
• Add inline filter for creek/bore water
• Clean after each use
⚠️ Avoid pumping sand, mud, or heavy sediment.
| Use Case | Best Choice |
|---|---|
| Occasional camping | PWP‑06 |
| Fast water transfer | PWP‑17 |
| Permanent caravan system | PWP‑17P |
| Running taps & shower | PWP‑17P |
| Heavy off‑grid touring | PWP‑17 |
| Lightweight setup | PWP‑06 |
A pump is faster, more reliable, and works anywhere.
• Flush with clean water after use
• Clean inlet filter regularly
• Avoid dry running
• Store in a dry place
• Check hose fittings before trips
• Fast transfer (17L/min)
• Strong enough for caravans, farms, marine, emergency use
• Best balance of power & versatility
PWP‑06 – Lightweight everyday use
• Low power draw (6A)
• Great for small jobs & camping
• Quiet and battery‑friendly
PWP‑17P – Permanent caravan system
• Designed for fixed plumbing
• Runs taps, showers, sinks automatically
• Best for caravans & camper trailers
