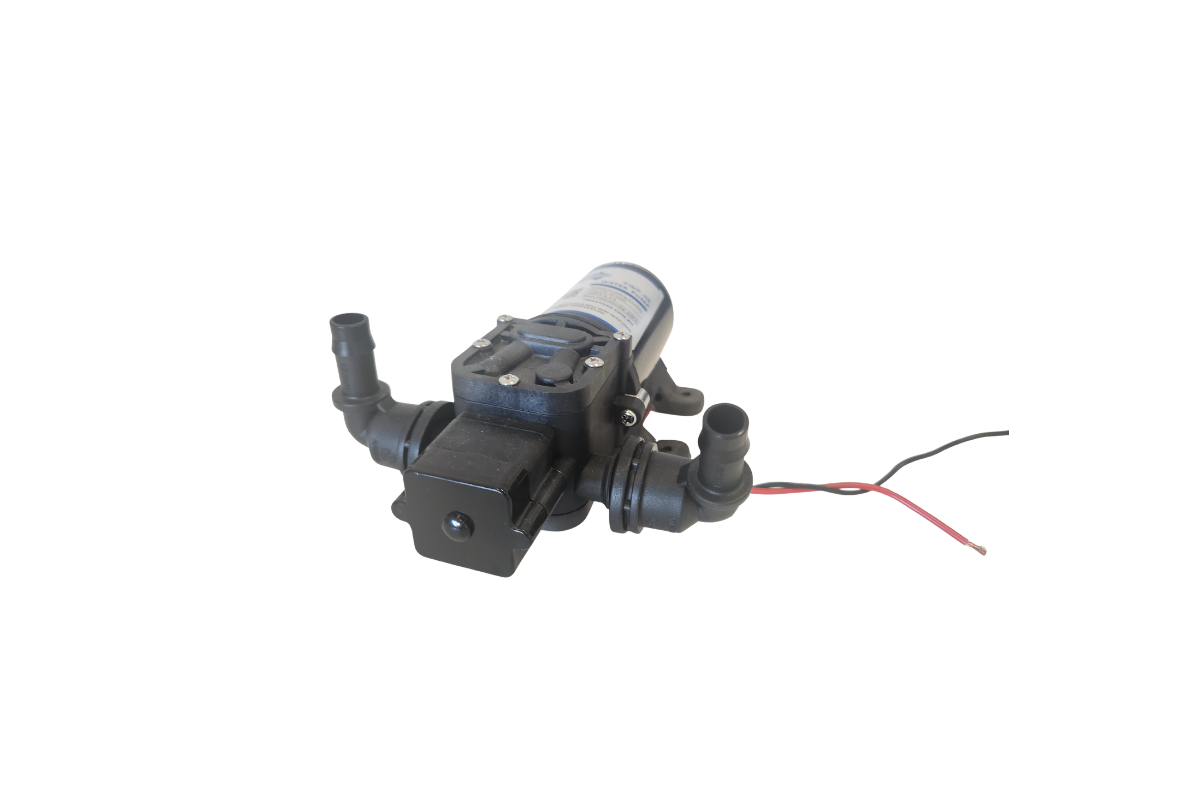

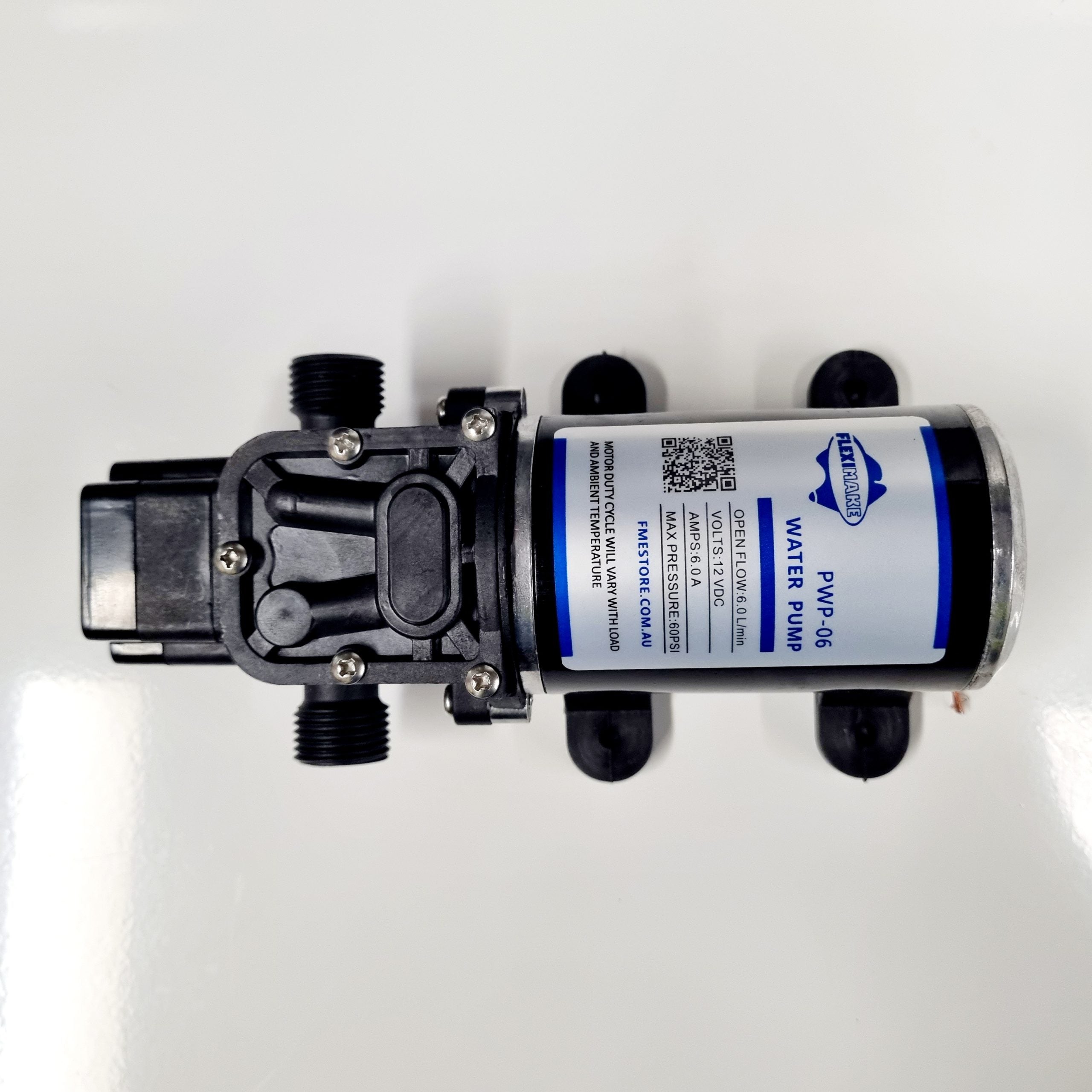

12V Water Pump PWP-06 – 6L/min
12V Water Pump PWP-06 – 6L/min
Available in stock (105)
Couldn't load pickup availability
Product Details
Product Details
Make your water setup simple and reliable with the PWP-06 12V Water Pump – designed for caravans, 4x4s, camping, marine, and off-grid use.
Delivering 6L/min flow and 60 PSI pressure, this compact pump provides steady water for taps, showers, and transfer systems.
💡 Easy Installation – No Hassle Setup

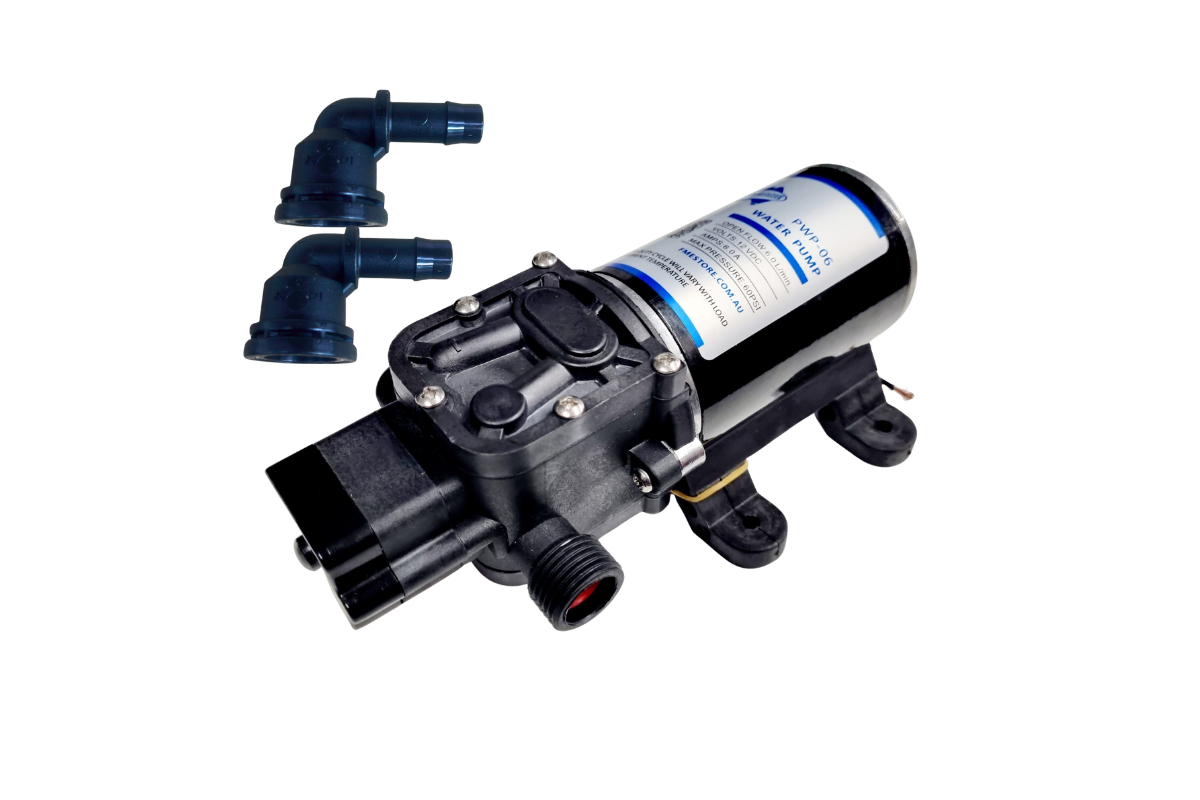

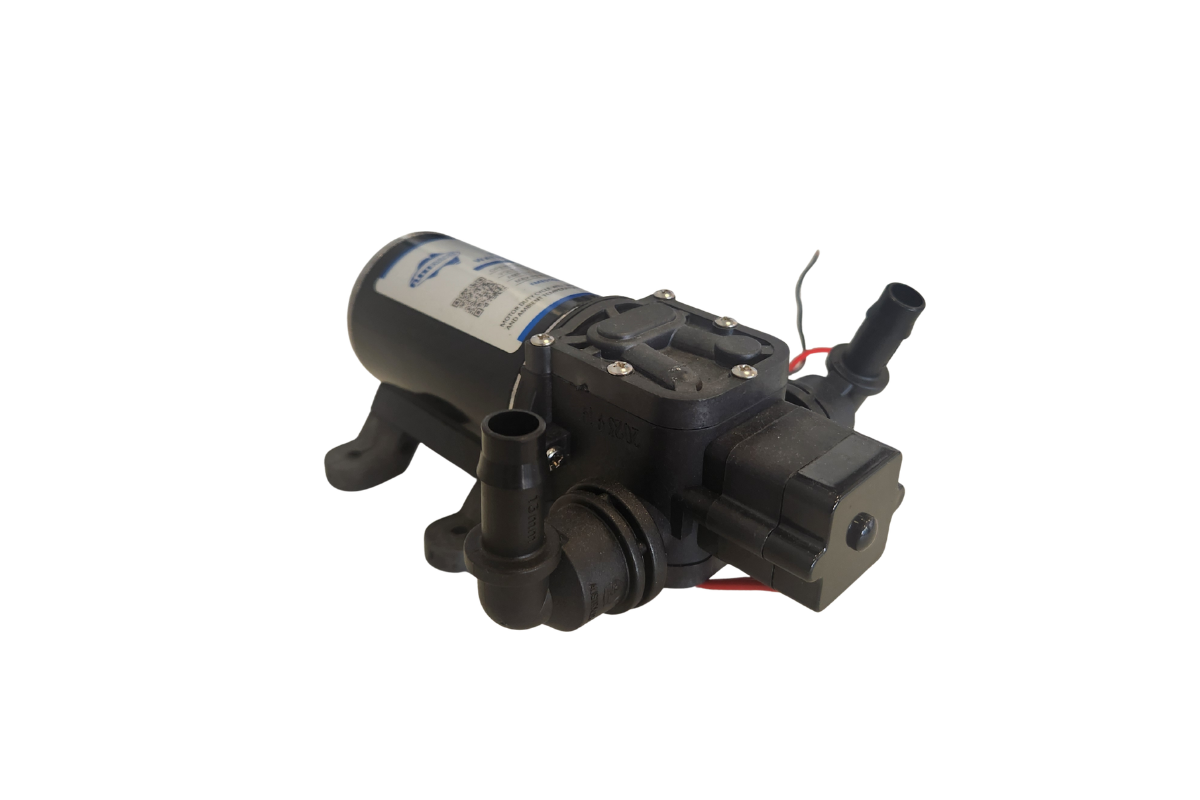

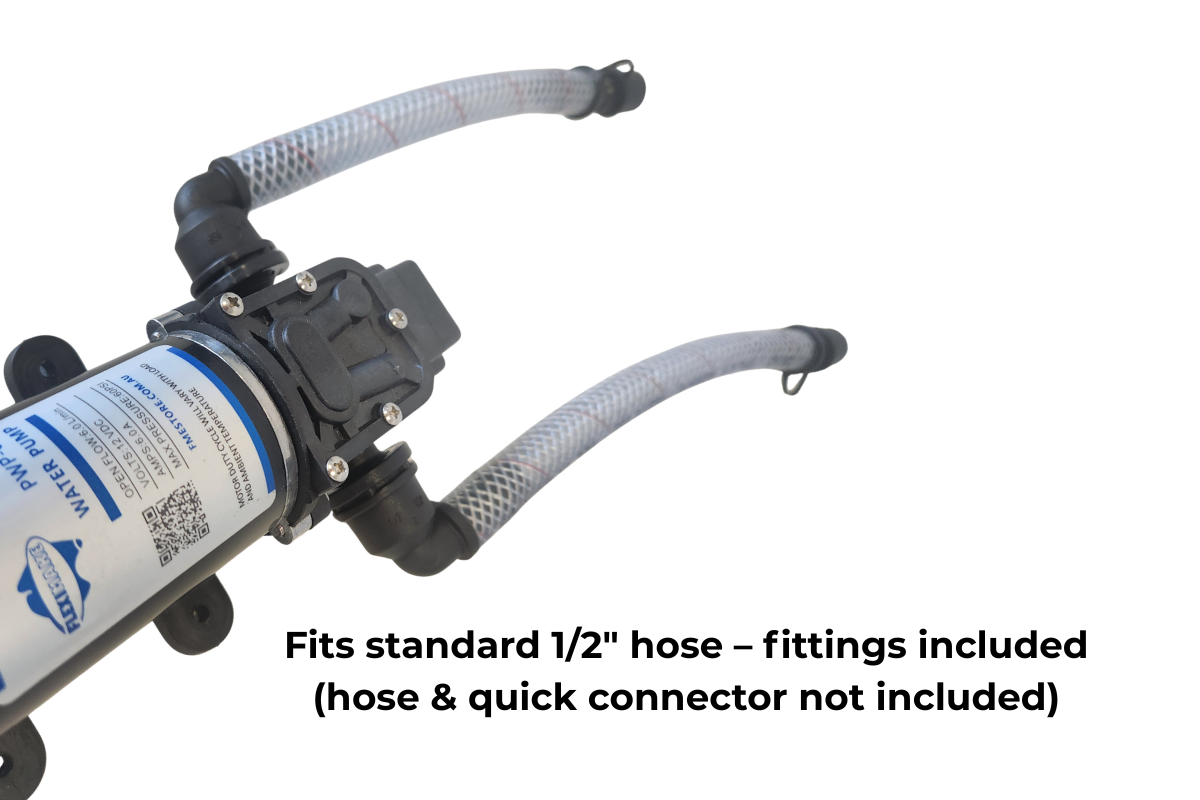

This pump comes with 90° elbow fittings with 1/2" (13mm) hose barb ends, so you can connect directly to standard garden hose without complicated plumbing. Just push on your hose and secure—it’s ready to go.
Built for durability, quiet operation, and versatile applications, the PWP-06 is a dependable choice wherever water is needed.
| Pump Specifications | |
|---|---|
| Flow & Pressure | 6 L/min • 60 PSI – Ideal for taps, showers & transfer |
| Power | 12V DC • 6A – Efficient for caravan & 4x4 use |
| Pump Type | Diaphragm – Reliable, self-priming design |
| Self-Priming | Up to 2 m – Draws from tanks/bladders below |

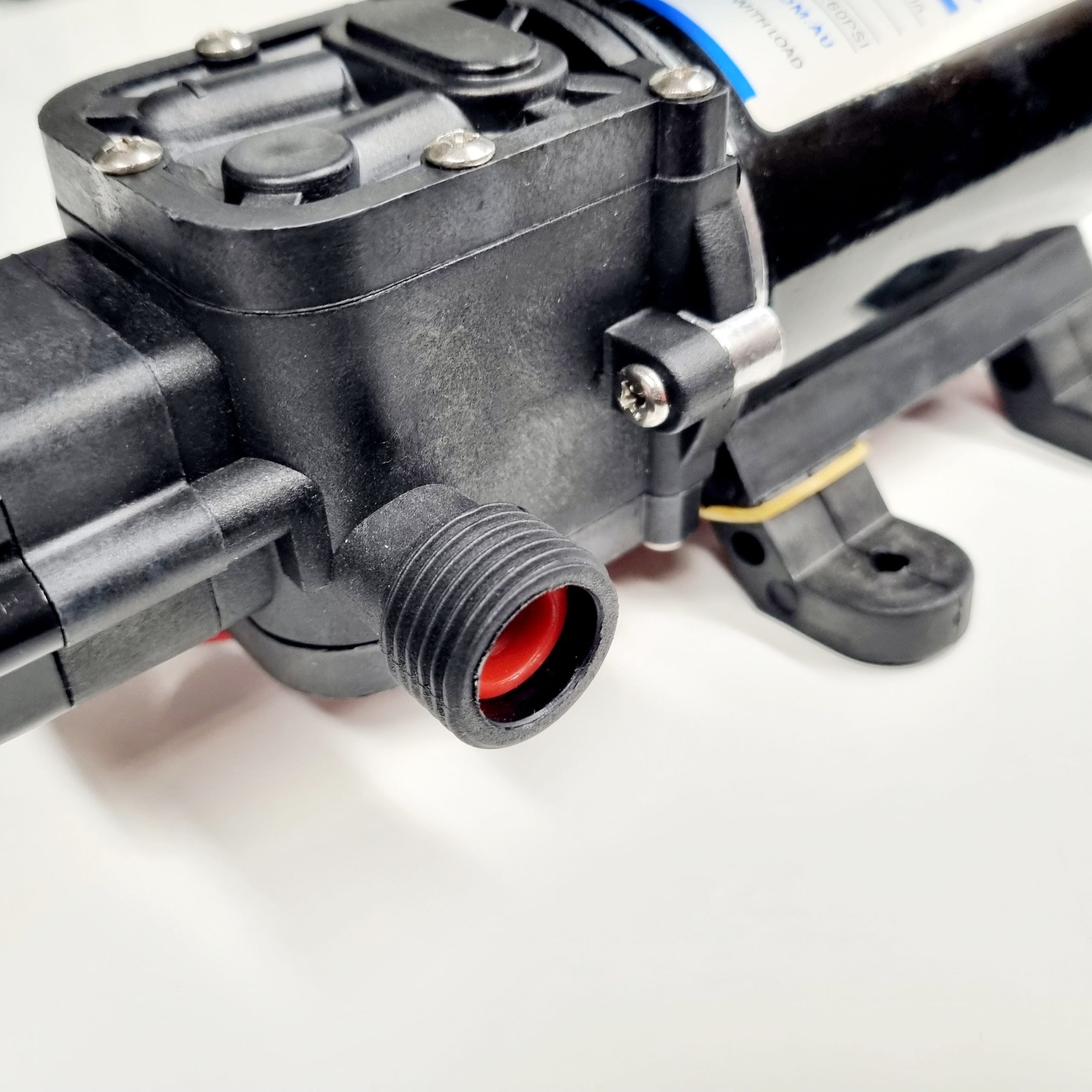

| Inlet/Outlet | 13 mm (1/2") + 90° elbow barb fittings included |
| Easy Connection | Fits standard 1/2" garden hose – quick setup |
| Auto Operation | Pressure switch – Turns on/off with tap |
| Protection | Thermal + Dry Run – Safe & long-lasting |
| Water Use | Fresh & Salt Water – Drinking water safe |
| Size & Weight | 178 × 100 × 79 mm • 1.2 kg |
| Mounting | Any orientation – Flexible installation |
| Warranty | 12 Months |
What's Included
What's Included
Applications
Applications
Documents
Documents
Download product documentation:
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Make your water setup simple and reliable with the PWP-06 12V Water Pump – designed for caravans, 4x4s, camping, marine, and off-grid use.
Delivering 6L/min flow and 60 PSI pressure, this compact pump provides steady water for taps, showers, and transfer systems.
💡 Easy Installation – No Hassle Setup
This pump comes with 90° elbow fittings with 1/2" (13mm) hose barb ends, so you can connect directly to standard garden hose without complicated plumbing. Just push on your hose and secure—it’s ready to go.
Built for durability, quiet operation, and versatile applications, the PWP-06 is a dependable choice wherever water is needed.
| Pump Specifications | |
|---|---|
| Flow & Pressure | 6 L/min • 60 PSI – Ideal for taps, showers & transfer |
| Power | 12V DC • 6A – Efficient for caravan & 4x4 use |
| Pump Type | Diaphragm – Reliable, self-priming design |
| Self-Priming | Up to 2 m – Draws from tanks/bladders below |
| Inlet/Outlet | 13 mm (1/2") + 90° elbow barb fittings included |
| Easy Connection | Fits standard 1/2" garden hose – quick setup |
| Auto Operation | Pressure switch – Turns on/off with tap |
| Protection | Thermal + Dry Run – Safe & long-lasting |
| Water Use | Fresh & Salt Water – Drinking water safe |
| Size & Weight | 178 × 100 × 79 mm • 1.2 kg |
| Mounting | Any orientation – Flexible installation |
| Warranty | 12 Months |
Water Transfer & Caravan Filling
• Water bladders
• Jerry cans
• Drums
• Portable tanks
Into your caravan, camper trailer, motorhome, or RV tank — no more lifting heavy containers or relying on gravity.
• Fastest and best all‑round performance
• Ideal for most caravan and 4WD travellers
PWP-06 (Simple & Efficient)
• Low power draw
• Best for occasional use or smaller setups
• Quiet and lightweight
PWP-17P (Permanent Caravan Setup)
• Designed for fixed caravan plumbing
• Runs taps, shower, and kitchen sink
• Automatically starts and stops
For best performance:
• Keep pump close to water source
• Use short inlet hose
• Ensure tight, air‑free connections
PWP‑17P: Should not be run dry for long periods.
Tip: You'll hear a change in sound before water runs out.
PWP‑06 & PWP‑17: Must be turned off manually.
Best practice: Always monitor filling for safety.
| Volume | PWP‑06 | PWP‑17 / PWP‑17P |
|---|---|---|
| 50L | ~8–9 min | ~3 min |
| 100L | ~16–17 min | ~6 min |
| 150L | ~25 min | ~9 min |
• PWP‑17 / PWP‑17P: 19mm (3/4") hose for maximum flow
Rubber mounting reduces vibration significantly.
For best results:
• Use rubber vibration mounts
• Mount on solid surface
• Avoid thin sheet metal
For best hygiene:
• Use food‑grade hoses
• Flush system before first use
• Clean filter regularly
• Fill bladder: Water source → Pump → Bladder
• Fill caravan tank: Bladder → Pump → Caravan tank
• Transfer between tanks: Any full tank → Pump → Any empty tank
With our 13mm Barbed to 12mm Snap‑On Connectors, you can swap jobs in under 5 seconds.
Pro tip: Buy 2× female connectors (pump inlet + outlet) and 3× male connectors (bladder hose, tank hose, shower hose).
Switch water direction by turning a valve instead of touching hoses.
Off‑Road & Camping Use
Useful when:
• Water pressure is low
• Bladder is far from tap
• Faster filling is needed
• 4WD touring
• Caravan travel
• Beach camping
• Overlanding
• Remote campsites
• Long off‑grid trips
Recommended:
• Use supplied inlet strainer
• Add inline filter for creek/bore water
• Clean after each use
⚠️ Avoid pumping sand, mud, or heavy sediment.
| Use Case | Best Choice |
|---|---|
| Occasional camping | PWP‑06 |
| Fast water transfer | PWP‑17 |
| Permanent caravan system | PWP‑17P |
| Running taps & shower | PWP‑17P |
| Heavy off‑grid touring | PWP‑17 |
| Lightweight setup | PWP‑06 |
A pump is faster, more reliable, and works anywhere.
• Flush with clean water after use
• Clean inlet filter regularly
• Avoid dry running
• Store in a dry place
• Check hose fittings before trips
• Fast transfer (17L/min)
• Strong enough for caravans, farms, marine, emergency use
• Best balance of power & versatility
PWP‑06 – Lightweight everyday use
• Low power draw (6A)
• Great for small jobs & camping
• Quiet and battery‑friendly
PWP‑17P – Permanent caravan system
• Designed for fixed plumbing
• Runs taps, showers, sinks automatically
• Best for caravans & camper trailers
